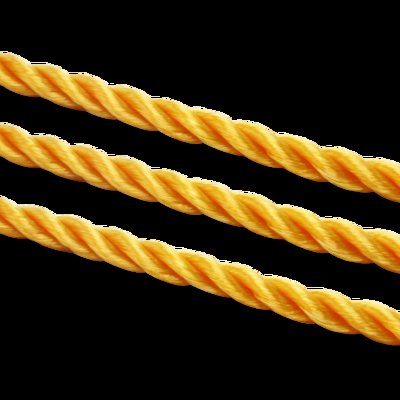

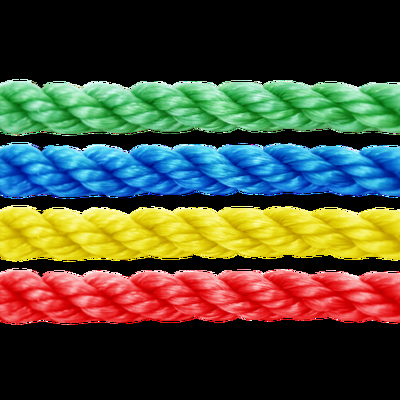

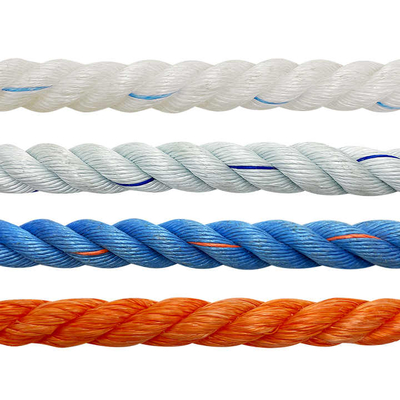

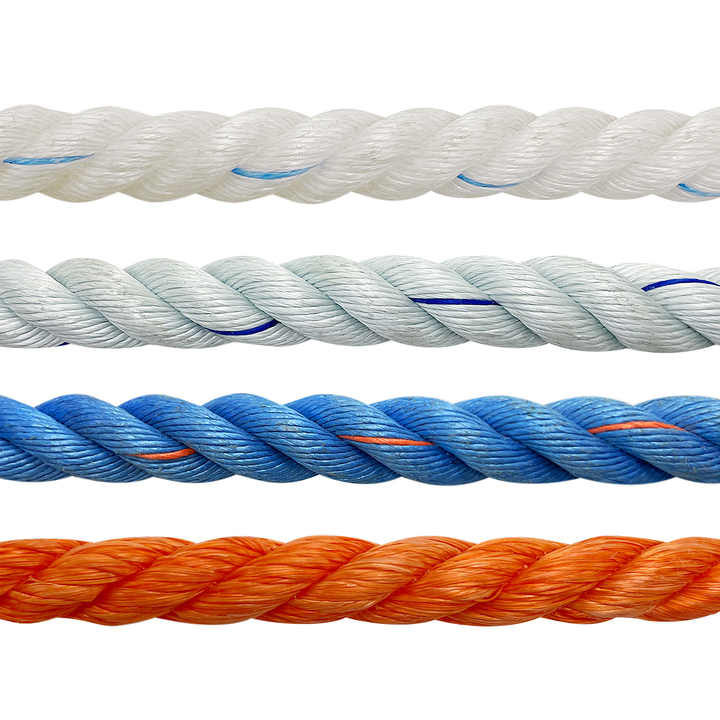

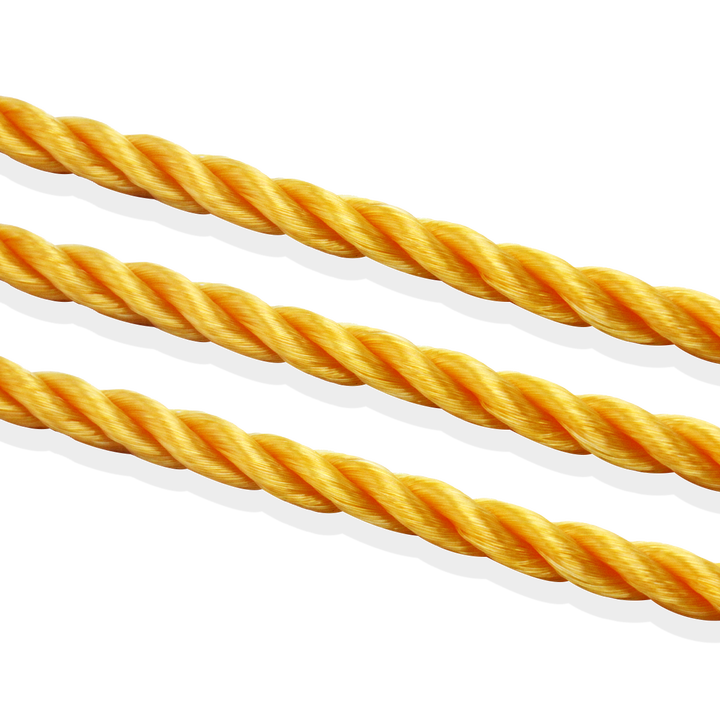

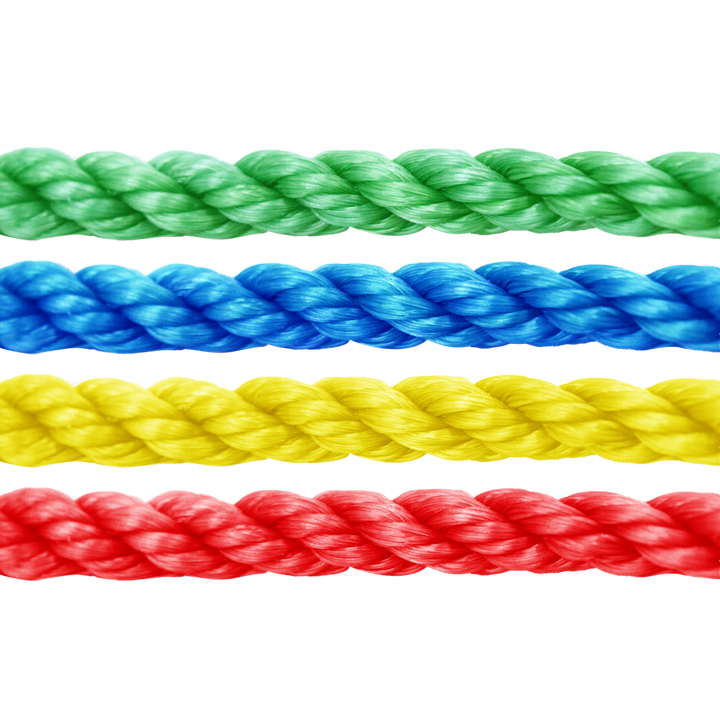

PP 12MM 4 Strand Any Colour Marine / Packing Mooring Rope
| Place of Origin | CHINA |
|---|---|
| Brand Name | JC MARINETIME |
| Certification | ISO / CE |
| Model Number | 3 / 4 / 8 / 12 STRAND ROPE |
| Minimum Order Quantity | 220 Meter |
| Price | 30 USD Per Meters |
| Packaging Details | Pallet Or As Required |
| Delivery Time | 5-20 days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 50000 Meters Per Month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Part | Dock Mooring | Coil Length | 220m |
|---|---|---|---|
| Weight And Length Tolerance | ± 5% | Spliced Strength | ±10% Lower |
| U.V.Resistance | Very Good | Service | OEM/ODM |
| Warranty | 12 Months | Color | Customers' Requirments,As Your Request,Black,White,optional |
| Material | Polypropylene,Nylon,polyester,PP,PET/PA/PP/PE As Request | Feature | UV Resistant,Durable,Good Resistance To Solvents And Chemicals,Corrosion Resistance,High Tenacity |
| Highlight | Packing Rope Mooring Rope,12MM Marine Mooring Rope,12MM Marine Packing Rope |
||
You can tick the products you need and communicate with us in the message board.
| Specification | Specification | PA Multifilament | PA Multifilament | PET/PP Mixed | PET/PP Mixed | |
|---|---|---|---|---|---|---|
| Dia. | Cir | Ktex | KN | Ktex | KN | |
| 直径 | 圆 周 | 线密度 | 破断强力 | 线密度 | 破断强力 | |
| 4 | 1/2 | 10 | 3.7 | 7.0 | 2.8 | |
| 6 | 3/4 | 22 | 7.9 | 17.5 | 6.8 | |
| 8 | 1 | 40 | 13.8 | 31 | 11.9 | |
| 10 | 1-1/4 | 62 | 21.2 | 48.5 | 18.2 | |
| 12 | 1-1/2 | 89 | 30.1 | 69.9 | 25.7 | |
| 14 | 1-3/4 | 121 | 40.0 | 95.1 | 34.7 | |
| 16 | 2 | 158 | 51.9 | 124 | 44.8 | |
| 18 | 2-1/4 | 200 | 64.3 | 157 | 56.1 | |
| 20 | 2-1/2 | 247 | 79.2 | 194 | 68.7 | |
| 22 | 2-3/4 | 299 | 94.0 | 235 | 82.1 | |
| 24 | 3 | 355 | 112 | 279 | 96.3 | |
| 26 | 3-1/4 | 417 | 129 | 328 | 113 | |
| 28 | 3-1/2 | 484 | 149 | 380 | 130 | |
| 30 | 3-3/4 | 555 | 169 | 437 | 148 | |
| 32 | 4 | 632 | 192 | 497 | 167 | |
| 36 | 4 - 1/ 2 | 800 | 240 | 629 | 210 | |
| 40 | 5 | 987 | 294 | 776 | 257 | |
| 44 | 5-1/2 | 1190 | 351 | 939 | 308 | |
| 48 | 6 | 1420 | 412 | 1110 | 364 | |
| 52 | 6-1/2 | 1670 | 479 | 1320 | 424 | |
| 56 | 7 | 1930 | 550 | 1520 | 489 |
Product Description
PP ROPE 12MM 4 Strand with Any Colour Marine /packing Rope Mooring Rope
1.General Description
QINGDAO JINCHENG MARITIME mooring rope series includes nylon, polypropylene filament, polypropylene, polypropylene/polyester blend, polyester and other varieties, which are widely used, with high strength, low elongation, wear resistance, corrosion resistance and other advantages, soft and smooth, easy to operate, and can also be used to make special anti-static ropes. The products are mainly used in ships, fishing, port loading and unloading, power construction, oil exploration, sports goods, national defense research and other fields.
2. Main performance
| Material | Polyamide Multifilament |
Polyamide Yarn |
Polypropylene Multifilament |
Polypropylene | Polyester | Polypropylene and Polyester Mixed |
| Spec.Density | 1.14 no floating |
1.14 not floating |
0.91 no floating |
0.91 Floating |
1.27 no floating |
0.95 Floating |
| Melting Point | 215℃ | 215℃ | 165℃ | 165℃ | 260℃ | 165℃/260℃ |
| Abrasion Resistance | Very Good | Very Good | Medium | Medium | Good | Good |
| U.V.Resistance | Very Good | Very Good | Medium | Medium | Good | Good |
| Temperature resistance | 120℃max | 120℃max | 70℃max | 70℃max | 120℃max | 80℃max |
| Chemical resistance | Very Good | Very Good | Good | Good | Good | Good |
3.Technology Comparison
Coil length: 220m
Spliced strength:± 10% lower
Weight and length tolerance:± 5%
MBL=Minimum Breaking Load conform ISO 2307
Other sizes available upon request
4.Parameter Table
| Specification 规格 |
PA Multifilament 锦纶复丝 |
PAYarn 锦纶 |
PP Multifilament 丙纶长丝 |
Polypropylene 丙纶 |
Polyester 涤纶 |
PET/PP Mixed 丙纶/涤纶混合绳 |
|||||||
| Dia. | Cir | Ktex | KN | Ktex | KN | Ktex | KN | Ktex | KN | Ktex | KN | Ktex | KN |
| 直径 | 圆 周 | 线密度 | 破断强力 | 线密度 | 破断强力 | 线密度 | 破断强力 | 线密度 | 破断强力 | 线密度 | 破断强力 | 线密度 | 破断强力 |
| 4 | 1/2 | 10 | 3.7 | 10 | 2.6 | 6.3 | 2.3 | 6 | 2.1 | 12 | 2.9 | 7.0 | 2.8 |
| 6 | 3/4 | 22 | 7.9 | 22 | 6 | 18 | 6.5 | 17 | 5.9 | 27 | 5.6 | 17.5 | 6.8 |
| 8 | 1 | 40 | 13.8 | 40 | 10.9 | 32 | 11.4 | 30 | 10.4 | 48 | 10.0 | 31 | 11.9 |
| 10 | 1-1/4 | 62 | 21.2 | 62 | 15.7 | 47 | 16.8 | 45 | 15.3 | 76 | 15.6 | 48.5 | 18.2 |
| 12 | 1-1/2 | 89 | 30.1 | 89 | 24.1 | 68 | 23.9 | 65 | 21.7 | 110 | 22.3 | 69.9 | 25.7 |
| 14 | 1-3/4 | 121 | 40.0 | 121 | 33.0 | 95 | 32.9 | 90 | 29.9 | 148 | 31.2 | 95.1 | 34.7 |
| 16 | 2 | 158 | 51.9 | 158 | 42.5 | 121 | 40.7 | 115 | 37.0 | 195 | 39.8 | 124 | 44.8 |
| 18 | 2-1/4 | 200 | 64.3 | 200 | 53.9 | 155 | 51.9 | 148 | 47.2 | 245 | 49.8 | 157 | 56.1 |
| 20 | 2-1/2 | 247 | 79.2 | 247 | 66.7 | 189 | 62.6 | 180 | 56.9 | 303 | 62.3 | 194 | 68.7 |
| 22 | 2-3/4 | 299 | 94.0 | 299 | 80.4 | 231 | 75.0 | 220 | 68.2 | 367 | 74.7 | 235 | 82.1 |
| 24 | 3 | 355 | 112 | 355 | 93.6 | 273 | 87.7 | 260 | 79.7 | 437 | 89.6 | 279 | 96.3 |
| 26 | 3-1/4 | 417 | 129 | 417 | 111.5 | 320 | 101 | 305 | 92.2 | 512 | 105 | 328 | 113 |
| 28 | 3-1/2 | 484 | 149 | 484 | 127 | 373 | 115 | 355 | 105 | 594 | 120 | 380 | 130 |
| 30 | 3-3/4 | 555 | 169 | 555 | 143 | 425 | 132 | 405 | 120 | 682 | 134 | 437 | 148 |
| 32 | 4 | 632 | 192 | 632 | 161 | 483 | 146 | 460 | 132 | 778 | 154 | 497 | 167 |
| 36 | 4 - 1/ 2 | 800 | 240 | 800 | 200 | 614 | 182 | 585 | 166 | 982 | 190 | 629 | 210 |
| 40 | 5 | 987 | 294 | 987 | 241 | 756 | 221 | 720 | 201 | 1215 | 235 | 776 | 257 |
| 44 | 5-1/2 | 1190 | 351 | 1190 | 289 | 924 | 266 | 880 | 242 | 1468 | 275 | 939 | 308 |
| 48 | 6 | 1420 | 412 | 1420 | 338 | 1092 | 308 | 1040 | 280 | 1750 | 329 | 1110 | 364 |
| 52 | 6-1/2 | 1670 | 479 | 1670 | 393 | 1281 | 357 | 1220 | 325 | 2050 | 384 | 1320 | 424 |
| 56 | 7 | 1930 | 550 | 1930 | 450 | 1491 | 408 | 1420 | 371 | 2380 | 439 | 1520 | 489 |
