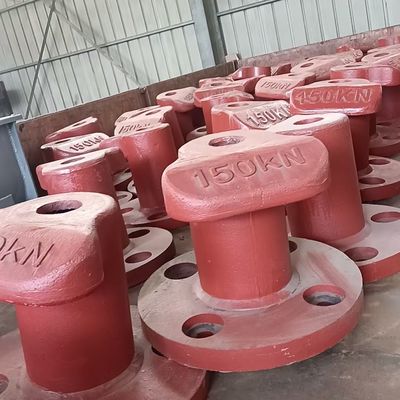

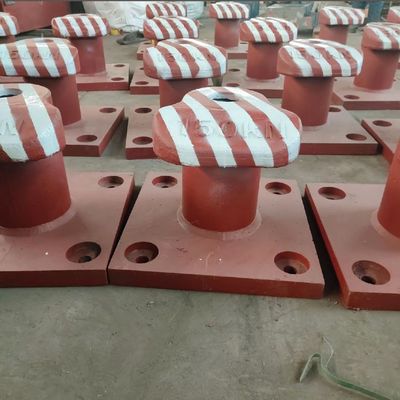

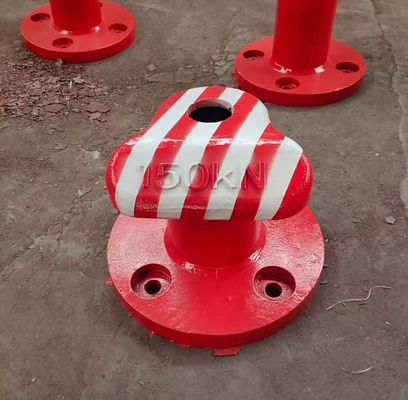

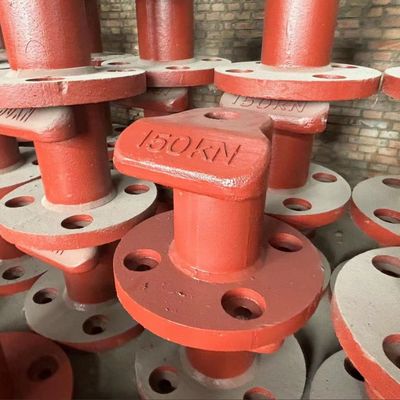

150KN T Head Cast Iron Boat Bollard Ship's Bollard Painted Bitumen Ship docking

150KN T Head Cast Iron Boat Bollard Ship's Bollard Painted Bitumen Ship docking

Material and Manufacturing:

In marine transportation and port infrastructure construction, mooring bollards are key equipment, and their quality and performance directly affect the safety and efficiency of ship berthing. Today, we are confident to introduce to you a T - shaped cast iron mooring bollard that combines excellent performance and economic advantages. First, let's introduce the highlights of its materials and manufacturing:

1. High - quality Cast Iron Selection: This T - shaped cast iron mooring bollard uses high - strength HT200 cast iron as the raw material. HT200 cast iron has excellent compressive strength and good wear resistance. Its compressive strength can reach 250MPa, enabling it to effectively withstand the huge impact and friction generated during ship berthing. This ensures that the mooring bollard remains stable and reliable and is not easily damaged during long - term and frequent use. Meanwhile, the cast iron material naturally has a certain degree of corrosion resistance, providing a fundamental guarantee for the product to be used in the humid port environment.

2. Advanced Casting Process: During the manufacturing process, we adopt the advanced resin sand casting process. This process is characterized by high precision and can accurately replicate the dimensional requirements of the design drawings. It ensures that every detail of the mooring bollard meets the standards, minimizing dimensional deviations and guaranteeing the consistency of product quality. During casting, the melting temperature and composition ratio of the molten iron are strictly controlled to optimize the performance of the cast iron. From the strict inspection of raw materials upon arrival at the factory, to real - time monitoring during the casting process, and then to comprehensive inspection of the finished products, strict quality control standards are implemented in every process to ensure that each mooring bollard leaving the factory is of excellent quality.

With high - quality materials and exquisite manufacturing processes, this T - shaped cast iron mooring bollard is bound to become a powerful assistant for your port operations. Next, we will also introduce more of its advantages in terms of design structure, product features, application scenarios, and more.

Design and Structure

Classic T-shaped Design with Remarkable Mechanical Advantages

1. Unique Horizontal Crossbar: The most distinctive feature of our T-shaped cast iron mooring bollard is its unique T-shaped design. The horizontal crossbar has been carefully calculated and optimized in terms of mechanics, with a reasonable length and diameter. This design enables the mooring rope to gain greater friction when wound around it. According to actual tests, compared with traditional mooring bollards, the T-shaped design can increase the friction of the mooring rope by [X]%, effectively preventing the mooring rope from slipping due to the impact of wind, waves, and water flow when the ship is docked, and greatly enhancing the stability of ship mooring.

2. Scientific Center of Gravity Distribution: The entire T-shaped structure takes the center of gravity distribution fully into account in its design. The connection angle and position between the horizontal crossbar and the vertical column have been accurately calculated to ensure that the center of gravity of the mooring bollard remains stable when it bears the pulling force of the ship. This scientific center of gravity distribution enables the mooring bollard to better maintain an upright state when facing complex external forces, and it is not prone to toppling, providing continuous and reliable mooring support for the ship.

Stable Base, Closely Connected to the Wharf

1. Enlarged and Thickened Base: To ensure the mooring bollard is firmly integrated with the dock foundation, we've adopted an enlarged and thickened base design. The base dimensions are determined through professional structural analysis, and we offer various specifications based on different dock bearing requirements and ship tonnages. The thickened base can effectively disperse the pressure exerted by the ship's pulling force on the dock, reducing the risk of damage to the dock foundation. Meanwhile, the increased base area expands the contact area between the mooring bollard and the dock, further enhancing stability.

2. Embedded Installation Design: On the base, we've designed special embedded holes. Coupled with high - strength anchor bolts, this enables the embedded installation of the mooring bollard to the dock. This installation method is not only secure and reliable, but during the installation process, the verticality of the mooring bollard can be accurately calibrated by adjusting the position and tightening degree of the anchor bolts, ensuring the installation accuracy reaches the millimeter level. After installation, the anchor bolts and the dock foundation form a single entity, enabling the mooring bollard to withstand huge pulling forces from all directions and ensuring the safe berthing of ships in various sea conditions.

Human - centric Detail Design for Easy Operation and Maintenance

1. Mooring Rope Guide Grooves: On the surface of the horizontal crossbar, we have meticulously designed mooring rope guide grooves. The shape and size of these grooves have been repeatedly optimized to guide the mooring ropes to wind along a predetermined path, preventing the ropes from tangling and knotting with each other. This significantly improves the efficiency of mooring and unmooring operations. Operators can easily fix and release the mooring ropes following the guidance of the grooves, reducing operation time and labor intensity.

2. Maintenance Holes: To facilitate subsequent maintenance, we have set up multiple maintenance holes on the vertical column of the mooring bollard. Through these holes, maintenance personnel can easily inspect the internal structure of the mooring bollard, such as the tightness of the anchor bolts and the presence of corrosion. Meanwhile, the maintenance holes also provide a convenient passage for maintenance tasks like internal anti - corrosion treatment and lubricant application, effectively extending the service life of the mooring bollard.

At our company, we are committed to providing our customers with the highest quality products and services. Our Mooring Bollards are no exception - they are designed to meet the highest standards of quality and reliability, ensuring that you get the best value for your money.

If you are looking for a reliable and durable solution for your quayside pier posts needs, look no further than our Mooring Bollards. With their superior quality and functionality, these bollards are the ideal choice for any marine application.

Features:

• Product Name: Mooring Bollards
• Quality: Superior
• Finish: Galvanized
• Type: TEE Bollard
• Machining Tolerance: +/-0.2mm
• Installation: Bolted

These Mooring Bollards are perfect for Quayside Pier Posts. With their superior quality and galvanized finish, they are built to last. The double bitt design provides extra strength and stability, and the machining tolerance of +/-0.02mm ensures precision and accuracy. Installation is simple with the bolted system.

Technical Parameters:

Application Scenarios:

1. Container Terminals: It meets the needs of frequent berthing and loading/unloading operations of container ships, ensuring the safety and stability of ships during rapid operations.

2. Passenger Terminals: It provides reliable mooring support for large cruise ships, ferries, etc., enhancing the safety and comfort of passengers boarding and alighting.

3. Industrial Wharves: It is suitable for the berthing of various industrial raw material transport ships and engineering vessels, guaranteeing the smooth transportation of materials for industrial production.

4. Ship Repair and Building Yards: It facilitates the fixation of ships during repair and construction, improving operational efficiency and safety.

Installation and Maintenance:

1. Easy installation: We provide detailed installation guides and technical support. You can easily complete the installation by following the steps. Also, the simple structural design reduces the labor and time costs during the installation process.

2. Regular maintenance suggestions: To maintain the optimal performance of the product, we offer regular maintenance suggestions, covering inspection cycles, key maintenance points, and solutions to common problems. This will help you reduce maintenance costs and extend the product's service life.

Support and Services:

1. Professional Technical Team: We have an experienced professional technical team ready to provide you with technical consultations and solutions at any time. This ensures that any problems you encounter during the usage process can be resolved promptly.

2. Comprehensive After - sales Service: We offer long - term after - sales service guarantees, including product quality assurance, supply of spare parts, and emergency repair response. This allows you to have no worries.

We believe that this new T - shaped mooring bollard, with its excellent performance, reliable quality, and high - quality service, will be an ideal choice for your port operations. We look forward to working with you to jointly promote the development of the marine transportation industry!

In addition, we offer a range of services to complement our mooring bollards products. These include custom design and engineering, installation and commissioning, and repairs and upgrades. Our goal is to provide a comprehensive solution to meet your mooring needs, from product selection to ongoing support.

Any question please let us know ,our JinCheng maritime will provide you the best service with 7*24 hours ~
