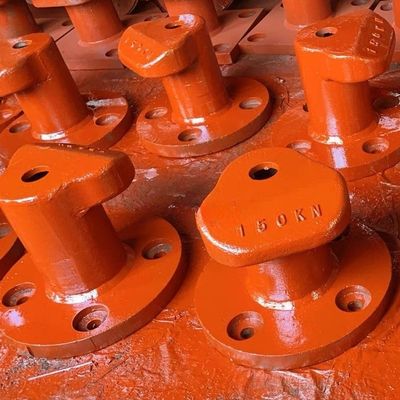

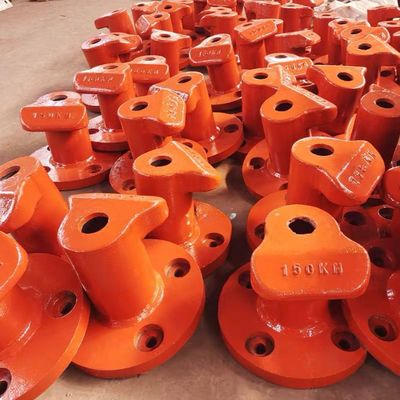

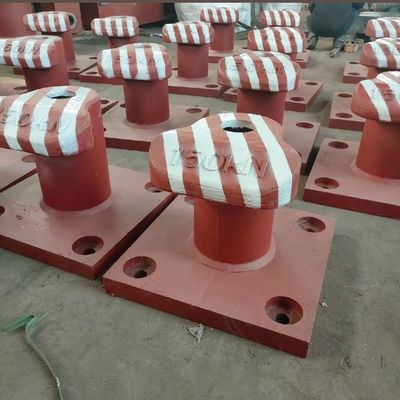

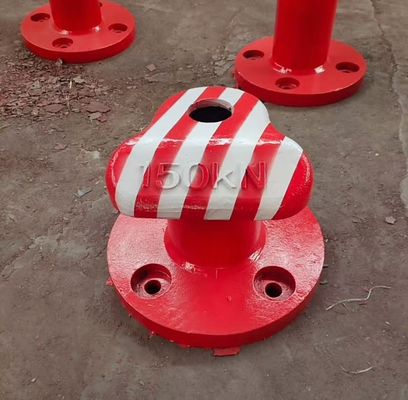

150KN T Type Cast Iron Cast Bollard Bollards in Ship Galvanized Dock mooring

Material and Manufacturing:

• Material Selection: We choose HT200 cast iron as the main material for the mooring bollard. This material has the characteristic of high strength, with a tensile strength of over 200MPa, which enables it to withstand the huge pulling force generated during the mooring of ships and ensures the stability of ships during berthing. At the same time, HT200 cast iron has good durability and excellent corrosion resistance. The graphite component in the cast iron helps to improve the lubricity and oil storage capacity of the material, enabling it to effectively resist the erosion of seawater, salt spray, etc. in harsh marine environments, greatly extending the service life of the mooring bollard and reducing maintenance costs.

• Manufacturing Process: During manufacturing, the resin sand molding casting process is adopted. This process features good sand mold stiffness and high strength in the initial stage of pouring. It can make full use of the graphitization expansion during the solidification process of cast iron, effectively eliminating defects such as shrinkage cavities and porosity, and achieving the casting of gray cast iron parts with few or no risers, which not only ensures the product quality but also improves the material utilization rate. In the production process, every link, from raw material inspection, through casting, processing and forming, to the final quality inspection, is strictly controlled. High-precision processing equipment is used to ensure the dimensional accuracy and surface quality of the mooring bollard, enabling it to meet the usage requirements of different docks and ships.

Features:

1. High tensile strength: High-quality cast iron materials such as HT200 are selected, with a tensile strength exceeding 200MPa. It can withstand the strong pulling force during the mooring of ships, ensuring the safe berthing of ships and being fearless of strong winds and water flow impacts.

2. Excellent corrosion resistance: The graphite component in the cast iron enhances its corrosion resistance. In the face of harsh environments such as seawater and salt spray, it can effectively delay rusting, greatly extend the service life, and reduce maintenance costs.

3. Stable and reasonable structure: With a unique T-shaped structure design, it has a low center of gravity and a stable base, which can effectively disperse the mooring force, reduce the risk of tilting or displacement, and ensure the stability of ships during mooring.

4. Good shock absorption and buffering: The material characteristics endow the mooring bollard with excellent shock absorption ability. At the moment of the ship's berthing and collision, it can effectively buffer the impact force and reduce the damage to the hull and wharf facilities.

5. Wide adaptability: The product has a rich range of specifications and models, covering 50KN - 2000KN, which can meet the mooring requirements of ships of different sizes and different types of wharves, and has a wide range of application scenarios.

Technical Parameters:

Application Scenarios:

1. Commercial Ports: Large cargo ships dock frequently. The T-shaped cast iron mooring bollards are of high strength and corrosion-resistant, capable of withstanding the mooring forces of heavily loaded cargo ships and ensuring the safe and efficient loading and unloading of goods.

2. Passenger Terminals: They aim for smooth ship berthing. The excellent shock-absorbing performance of the T-shaped cast iron mooring bollards can reduce the impact during berthing, guarantee the safety of passengers boarding and alighting, and enhance the travel experience.

3. Industrial Wharves: They are suitable for factories, oil refineries, etc. These mooring bollards can handle various industrial transport ships, being stable and reliable, and meeting the berthing requirements of industrial material transport ships.

4. Tourist Wharves: With a simple and practical shape, they are suitable for sightseeing boats and cruise ships. While bearing the mooring of passenger ships, they blend harmoniously with the surrounding landscape.

5. Fishing Ports: Fishing boats operate frequently. The T-shaped cast iron mooring bollards are corrosion-resistant, sturdy and durable, and can withstand the long-term erosion of seawater and the frequent mooring and unmooring of fishing boats.

Support and Services:

Professional Technical Support

We offer comprehensive professional technical support. During the product selection phase, based on factors such as the scale of the dock, the type of ships, and the water area conditions, we provide customers with scientific and reasonable selection suggestions for mooring bollards. During the product installation process, experienced technical personnel will be arranged to provide on - site guidance to ensure that the installation is carried out in a standardized and firm manner and meets safety standards. During the usage period, if customers encounter technical problems, we will respond immediately. We will assist customers in solving problems through phone calls, videos, or on - site inspections to ensure the normal use of mooring bollards.

Complete After - sales Guarantee

Our after - sales guarantee system is complete. The product comes with  warranty period. During the warranty period, if there are damages or malfunctions due to product quality problems, we will provide free maintenance or replacement. We have established a regular follow - up mechanism to actively understand the product usage situation, collect customer feedback, and provide a basis for product optimization and upgrading. At the same time, we have sufficient spare parts in stock to ensure that we can promptly meet customers' maintenance and replacement needs, minimizing the impact of equipment failures on customers' operations.

This T-shaped cast iron mooring bollard is guaranteed in quality by our professional technical team and comes with comprehensive after-sales service to eliminate any concerns. Relying on the dual advantages of technology and service, we are committed to providing reliable guarantees for ship mooring. We look forward to working hand in hand with all of you to inject new impetus into the development of the industry.

In addition, we offer a range of services to complement our mooring bollards products. These include custom design and engineering, installation and commissioning, and repairs and upgrades. Our goal is to provide a comprehensive solution to meet your mooring needs, from product selection to ongoing support.

Any question please let us know ,our JinCheng maritime will provide you the best service with 7*24 hours ~
