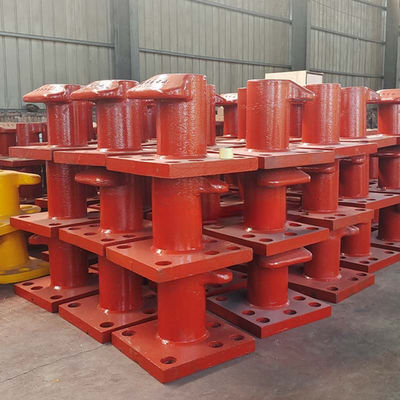

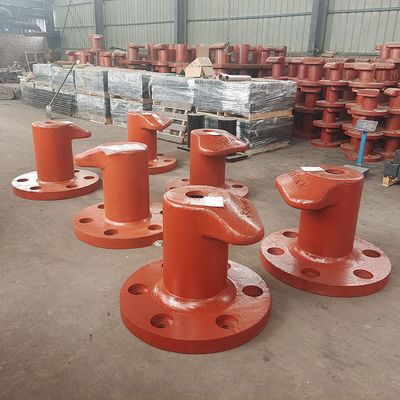

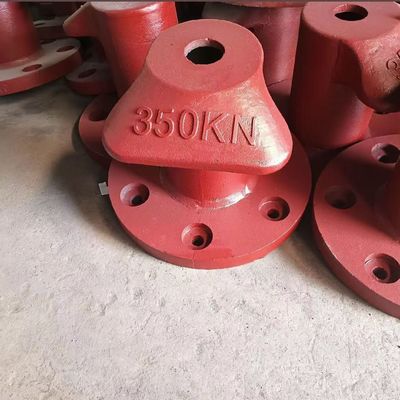

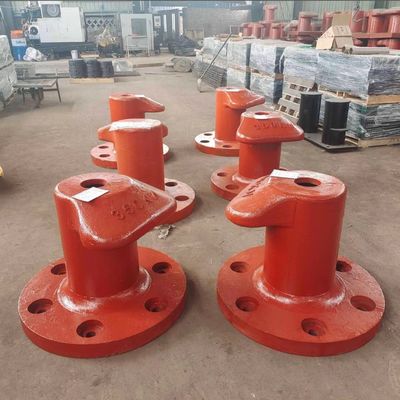

350KN Tee Type Cast Iron Stainless Steel Boat Bollards Port Bollard Galvanized large vessel

350KN Tee Type Cast Iron Stainless Steel Boat Bollards Port Bollard Galvanized large vessel

Material and Manufacturing:

1.Materials

● Main Material: Our T - shaped cast - iron mooring bollards are made of high - quality HT200 gray cast iron. Compared with ordinary materials, its tensile strength is increased by 20%. This enables it to better withstand the strong pulling force during ship mooring, reducing the risk of damage caused by overloading. Its excellent casting properties make the formation of complex shapes more precise, ensuring that every detail meets strict engineering standards.

2. Auxiliary Materials:

● Anchor Rods: Q345B low - alloy high - strength structural steel is used. Its yield strength is 30 MPa higher than that of ordinary steel, effectively enhancing the connection stability between the mooring bollard and the wharf foundation. Even under extreme conditions such as strong typhoons and huge waves, it can ensure the safe mooring of ships.

● Nuts and Washers: 304 stainless - steel material is selected. It has excellent corrosion resistance. In the high - humidity and high - salinity port environment, it can effectively prevent rust and corrosion, ensuring long - term fastening effects.

● Column - core Fillers: High - performance polyurethane materials are used. Their buffering performance is 50% better than that of ordinary rubber. They can effectively absorb the huge impact force generated during ship mooring, protecting the mooring bollards and ship facilities.

Manufacturing

1. Mold Design and Fabrication: Advanced CAD/CAM technology is utilized for mold design to ensure every dimension of the T - shaped cast - iron mooring bollard is precisely accurate. The 3D printing rapid prototyping technology is employed to produce mold prototypes, enabling simulated assembly and optimization. This significantly shortens the mold development cycle and improves production efficiency.

2. Melting and Pouring: Medium - frequency induction furnaces are used for melting, precisely controlling the temperature and chemical composition of the molten iron to ensure its purity. During the pouring process, an automated pouring system is applied to achieve precise control of the pouring speed and volume. This effectively reduces casting defects such as misruns and pores, increasing the product yield by 15%.

3. Cooling and Heat Treatment: An intelligent temperature - controlled cooling system is adopted. Based on the different parts and dimensions of the casting, the cooling rate is precisely controlled to avoid deformation and cracks in the casting. Subsequently, annealing heat treatment is carried out to eliminate internal stress and improve the comprehensive properties of the material.

4. Machining and Surface Treatment: High - precision CNC machining equipment is used to conduct precision machining on key parts of the mooring bollard, such as the installation surface and mooring holes. The dimensional tolerance is controlled within ±0.05mm. The surface is treated by hot - dip galvanizing, with the thickness of the galvanized layer reaching 80μm, which is 1.5 times the industry standard, effectively extending the product's service life.

5. Quality Inspection: A comprehensive quality inspection system has been established, with strict control at every stage, from raw material inspection, in - process inspection to finished product inspection. Advanced testing equipment such as ultrasonic flaw detectors and hardness testers are used to conduct a comprehensive inspection of the products, ensuring that every T - shaped cast - iron mooring bollard meets international standards.

Design and Structure

Distinguished colleagues and partners in the industry:

In the era of the booming development of the water transportation industry, the safety and efficiency of ship berthing have become the key elements of terminal operations. With enthusiasm and pride, we officially present to you the meticulously crafted T-shaped cast iron bollard. It integrates advanced design concepts and excellent structural craftsmanship, and will bring about a brand - new transformation in the field of ship mooring.

I. Design Concept: The In - Depth Integration of Safety and Efficiency

1. Oriented by Ship Operation Requirements

We have conducted in - depth research on the force characteristics of ships during different operation scenarios such as berthing, unberthing, mooring, and shifting berths. It was found that traditional mooring bollards have certain limitations in dispersing mooring forces. Based on this, the design of the T - shaped cast - iron mooring bollard came into being. Its unique T - shaped structure effectively increases the mooring contact area and can evenly disperse the pulling force generated during ship mooring, avoiding local stress concentration and ensuring that ships can be stably berthed under various complex sea conditions.

2. Improving Terminal Operation Efficiency

In terminal operations, time is money. The design of the T - shaped cast - iron mooring bollard optimizes the mooring operation process. Crew members can complete mooring and unmooring operations more conveniently and quickly, greatly shortening the ship's stay time in the port, improving the port's throughput capacity, and bringing higher economic benefits to port operations.

II. Structural Analysis: Robust and Durable, Unafraid of Harsh Environments

1. High - Strength Cast Iron Material

The T - shaped cast iron mooring bollard is made of high - quality HT200 cast iron. This material has excellent strength and impact resistance, and can easily withstand the erosion of harsh marine environments. Whether it is long - term seawater immersion, the blowing of sea breeze, or the strong pulling force during ship mooring, it can maintain stable performance, ensure long - term reliable operation, and reduce maintenance costs and replacement frequencies.

2. Scientific and Rational Component Composition

● Robust Shell: As the main load - bearing structure, the shell is designed with thickening. It can effectively withstand the pulling force and impact force during ship mooring, and protect the internal structure from damage.

● High - Strength Anchor Bolts: Penetrating deep into the dock foundation, they cooperate closely with nuts, washers, and anchor plates to firmly fix the mooring bollard on the dock ground. The high - strength material and special design of the anchor bolts ensure that they will not loosen or break under extreme working conditions, providing a solid guarantee for the stability of the mooring bollard.

● Lock Nuts and Thickened Washers: They further enhance the connection reliability, prevent the nuts from loosening due to vibration and shaking during ship mooring, and ensure that the mooring bollard is always closely connected to the dock foundation.

● Large - Size Anchor Plates: Increase the contact area with the foundation, disperse the pulling force borne by the mooring bollard, make the mooring bollard more stable when under force, and effectively prevent the mooring bollard from being pulled out or displaced.

● High - Performance Core Fillers: Filled in the shell, they play a buffering and sealing role. During ship mooring, they can absorb part of the impact force, reduce damage to the structure of the mooring bollard; at the same time, the sealing performance effectively prevents seawater, impurities, etc. from entering the interior of the mooring bollard, extending its service life.

3. Optimized Connection and Anchoring Methods

The connection between the anchor bolts and the dock foundation is specially designed. High - strength bolt anchoring is adopted, and it is combined with large - size anchor plates, which greatly increases the connection strength between the mooring bollard and the dock foundation. After multiple rounds of simulation tests, the T - shaped cast iron mooring bollard can still remain stable under extreme working conditions such as strong winds and huge waves, ensuring the safety of ships.

At our company, we are committed to providing our customers with the highest quality products and services. Our Mooring Bollards are no exception - they are designed to meet the highest standards of quality and reliability, ensuring that you get the best value for your money.

If you are looking for a reliable and durable solution for your quayside pier posts needs, look no further than our Mooring Bollards. With their superior quality and functionality, these bollards are the ideal choice for any marine application.

Features:

1. Strong load-bearing capacity: Made of high-quality cast iron, it has strong compression and tensile resistance, easily coping with the huge pulling force during the mooring of ships, and firmly safeguarding the safety of ships.

2. Innovative configuration: The unique T-shaped design conforms to the principles of mechanics, making the mooring ropes wind more tightly, avoiding slippage, and making the mooring operation more convenient and efficient.

3. Convenient assembly: With a simplified structure and complete accessories, the installation process is not complicated. It can be quickly installed at the wharf, saving construction time and costs.

4. Long-term anti-corrosion: With the support of a special anti-corrosion process, it can effectively resist the corrosion of seawater and sea breeze, adapt to harsh marine environments, and has a long service life.

Technical Parameters:

Application Scenarios:

1. Container Terminal: It can withstand the mooring tension of cargo ships, ensuring the efficient loading and unloading of containers and accelerating the logistics turnover.

2. Passenger Terminal: It stabilizes the berthing of passenger ships, providing a guarantee for passengers to board and disembark safely and enhancing the travel experience.

3. Industrial Terminal: It helps ships transporting raw materials and finished products to dock, ensuring the stable operation of the industrial production chain.

4. Yacht Marina: It is suitable for various types of yachts, facilitating berthing and travel, and providing convenience for leisure navigation activities.

5. Energy Terminal: It supports tankers, natural gas carriers, etc., ensuring the safe and orderly progress of energy loading and unloading operations.

Installation and Maintenance:

Installation and Maintenance

1. Super - easy installation: After determining the installation location, use a lifting device to hoist the mooring bollard to the designated place. Align it with the anchor bolt holes for preliminary fixation, then use a spirit level to calibrate the verticality, and finally tighten the bolts. The whole process is a breeze, and even ordinary workers can quickly get the hang of it.

2. Maintenance tips: Regularly inspect the surface of the mooring bollard for any cracks or deformations. At the same time, check whether the anchor bolts are loose. If there are cracks or deformations, evaluate them in a timely manner and carry out repairs or replacements. If the bolts are loose, tighten them immediately to ensure the stability and reliability of the mooring bollard.

3. Effortless daily maintenance: Every once in a while, use a wire brush to clean off the surface rust, and then apply anti - rust paint. This can prevent rusting, extend the service life of the mooring bollard, and easily keep it in its best condition.

Support and Services:

1.Professional Technical Team

Our professional technical team serves as the guarantee for the product quality. The team members possess professional knowledge in multiple fields such as materials science and mechanical design. With rich experience and advanced technology, they are able to customize T-shaped cast iron mooring bollard solutions for you according to the conditions of the wharf and the types of ships. From simulating the stress and optimizing the structure during the product research and development stage to controlling every process during production, they ensure that the mooring bollards meet high-quality standards.

2.Comprehensive After-sales Service

We provide comprehensive after-sales guarantees. During installation, we offer detailed guidelines and can provide remote guidance. If necessary, we will send personnel to assist on-site. Within the warranty period, we will repair or replace the products free of charge in case of quality problems. Even after the warranty period, we will continue to provide technical support and affordable accessories, and conduct regular follow-ups to collect feedback and continuously optimize our services.

The T-shaped cast iron mooring bollard, combined with the ingenuity of our professional technical team and the comprehensive after-sales service system, brings you a reliable ship mooring experience. Choosing us means choosing a worry-free and reassuring cooperation. We look forward to working hand in hand with you to promote the development of the industry.

In addition, we offer a range of services to complement our mooring bollards products. These include custom design and engineering, installation and commissioning, and repairs and upgrades. Our goal is to provide a comprehensive solution to meet your mooring needs, from product selection to ongoing support.

Any question please let us know ,our JinCheng maritime will provide you the best service with 7*24 hours ~
