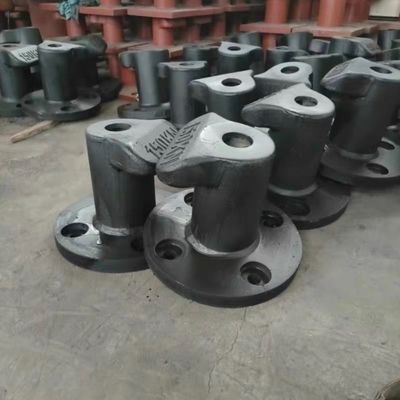

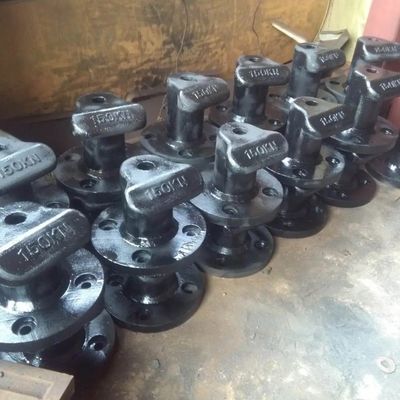

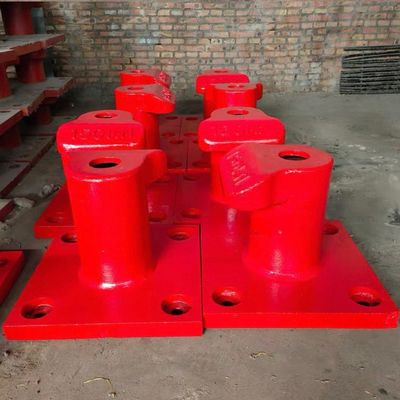

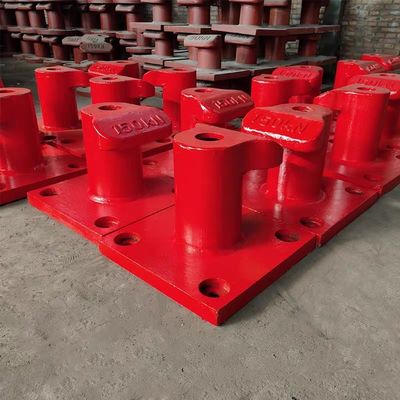

150KN T Type Cast Iron Boat Bollard Yacht Bollard Painted Bitumen For Marine Outfitting

Material and Manufacturing:

●Main Material: Usually, HT200 gray cast iron is selected. HT200 has good casting properties, shock absorption, and wear resistance. With a relatively low cost, it can meet the usage requirements of the T-shaped cast iron mooring bollard in the dock environment and withstand the pulling force and impact when the ship is moored.

● Auxiliary Materials: The anchor rods generally adopt high-strength steel, such as Q345, etc., to ensure a firm connection with the cast iron main body and effectively transfer the external forces received by the mooring bollard to the foundation structure. Nuts, washers, etc. usually use common carbon steel or stainless steel. Common carbon steel has a low cost, while stainless steel has better corrosion resistance, which can be selected according to the usage environment and requirements. Materials like asphalt and  fibers are often used as the core filling. They play a role in sealing and buffering, preventing water and impurities from entering the inside of the mooring bollard, and reducing the friction between the mooring rope and the mooring bollard.

● Casting: Sand casting is widely used. First, a wooden or metal mold is made and placed in a sand box. The sand is filled and compacted to form a cavity. Then, the molten cast iron is poured in. After cooling and solidifying, the sand mold is broken to take out the casting. Lost - foam casting is also commonly used. A foam plastic mold is made, coated with refractory paint, and then buried in dry sand and compacted by vibration. During casting, the foam plastic gasifies and disappears, and the molten metal fills to form the shape, which offers higher dimensional accuracy and better surface quality.

● Machining: The cast blanks need to be machined. Operations such as turning, drilling, and milling are carried out on parts like the installation surface and mooring holes to ensure dimensional accuracy and surface roughness. Shot blasting is used for rust removal, which can remove rust and impurities and improve surface adhesion. After that, anti - corrosion treatments such as painting or galvanizing are carried out.

Features:

1. High strength: Made of high-quality cast iron, it has strong compressive and tensile strength and can withstand the strong pulling force of the ship's mooring ropes.

2. Wear-resistant: The surface is specially treated, with good wear resistance, and is not easily damaged after long-term use.

3. Corrosion-resistant: It has good corrosion resistance and is not prone to rust in the humid wharf environment.

4. Easy to install: With a reasonable structural design and complete supporting installation components, the installation process is easy and convenient.

5. Wide applicability: It is suitable for various types of wharves and can meet the mooring needs of different ships.

Technical Parameters:

Application Scenarios:

1. Inland river ports: Provide reliable mooring for passing transport vessels, ensuring the logistics of inland waterway shipping.

2. Coastal energy terminals: Withstand the docking pulling force of large oil tankers and LNG carriers, facilitating energy transportation.

3. Ferry terminals: Stabilize the berthing of ferries and ensure the safe and rapid passage of people and vehicles across the two banks.

4. Offshore construction platforms: Secure construction vessels, facilitating the transportation of building materials and the embarkation and disembarkation of personnel, and advancing the project progress.

5. Cruise homeports: Relying on their high - strength characteristics, support the docking of giant cruise ships and meet the development needs of the cruise economy.

Support and Services:

1.Professional Technical Team Support

Our technical team is composed of experts from multiple fields such as naval architecture and material science, boasting rich industry experience. During the research and development of the T-shaped cast iron mooring bollard, we utilize simulation technology to optimize its structure, ensuring that the product can withstand enormous tensile forces even in harsh environments. Moreover, the team will tailor mooring solutions for customers according to the conditions of the wharf and the types of ships, and can also provide on-site technical guidance to ensure accurate installation.

2.Comprehensive After-sales Service Guarantee

To ensure that you have no worries, we have established a comprehensive after-sales service system. During the product warranty period, if there are any quality issues, we will provide free repair or replacement. After the warranty period, we will still offer long-term technical support and supply of spare parts. At the same time, we also provide regular follow-up visits to promptly understand the product usage situation, collect your opinions and suggestions, and continuously optimize our products and services. If you encounter any problems during the usage process, just call our customer service hotline, and we will solve them for you at the first time.

This T-shaped cast iron mooring bollard is guaranteed in quality by our professional technical team and comes with comprehensive after-sales service to eliminate any concerns. Relying on the dual advantages of technology and service, we are committed to providing reliable guarantees for ship mooring. We look forward to working hand in hand with all of you to inject new impetus into the development of the industry.

In addition, we offer a range of services to complement our mooring bollards products. These include custom design and engineering, installation and commissioning, and repairs and upgrades. Our goal is to provide a comprehensive solution to meet your mooring needs, from product selection to ongoing support.

Any question please let us know ,our JinCheng maritime will provide you the best service with 7*24 hours ~
