FEATURES
1.Up to 200t capacity on request
2.Safety factors can be adjusted
3.Very wide range of line angles 4.Choice of materials to suit climate and application
5.Perfect for multi-use facilities
All Products
Phone Number :
13356896590
WhatsAPP :
+13356896590
Cast Steel/Cast Iron Docking Dolphin Marine Pillar Bollard for Ports Marine Mooring Solutions
| Place of Origin | Qingdao, China |
|---|---|
| Brand Name | JC Maritime |
| Certification | ISO 9001 |
| Model Number | Horn Type |
| Minimum Order Quantity | 1 PC |
| Price | USD 800~1200 PER PIECE |
| Packaging Details | Wooden Crate / Steel Plate /Complying With Customer's Requirements |
| Delivery Time | 10-15 Working days |
| Payment Terms | T/T, Western Union, L/C, MoneyGram, D/A, D/P |
| Supply Ability | 5000 Metric Ton/Metric Tons Per Year |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 100T Horn Type Cast Steel Pier Bollards Port Bollard Polished Mooring Protection | Type | Horn Bollards |
|---|---|---|---|
| Material | Cast Iron，Cast Steel，Ductile Iron | Machining Tolerance | +/-0.2mm |
| Surface Finishing | Galvanizing Spraying | Color | Black/Yellow/Red Or Customer Demand |
| Certificate | ABS,BV,DNVGL,KR,LR,NK,RINA,CCS,PRS,IRS,RS,CRS Certificated | Port Of Loading | Qingdao, China |
Product Description
Cast Steel/Cast Iron Docking Dolphin Marine Pillar Bollard
Product Description

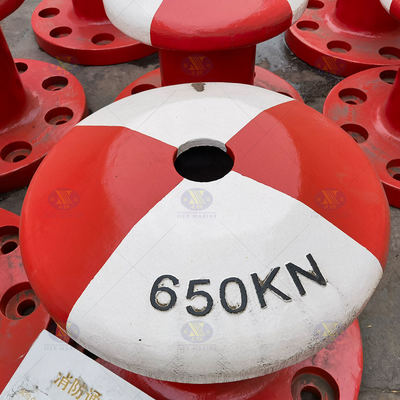

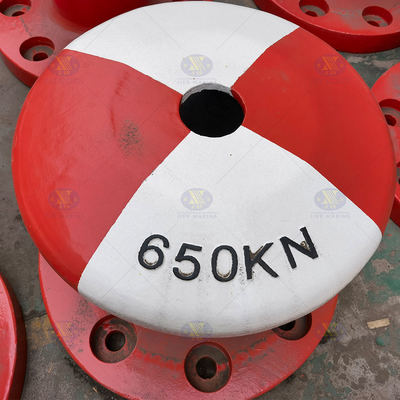

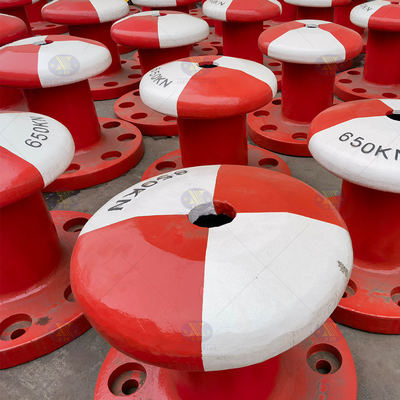

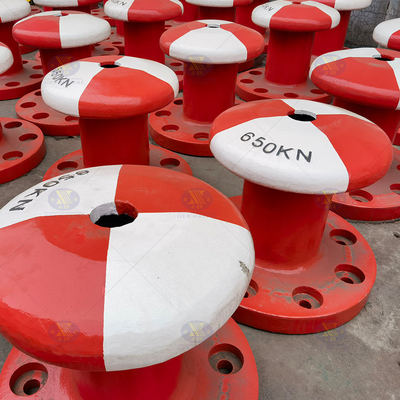

Pillar Bollard
Pillar Bollards are normally applicable where tidal ranges are small. Pillar bollards are suitable for warping operations. They can also be placed on jetties where vessels berth on both sides of the jetty structure dueto their 360 degree line of load range.
TYPICAL MATERIALS FOR BOLLARD
Spheroidal Graphite Iron and Cast Steel are commonest materials for bollards. Both can be used for various applications. JIER does not recommend gray cast iron. Cast iron bollards are widely used around the world.
SG IRON
Spheroidal Graphite Iron has high resistance to corrosion and is economical choice per weight. SG Iron is more suitable for warmer environments. SG Iron bollards tend to weigh more due to a thicker cross-section. SG Iron can avoid coating damage and their surface allows for clearer cast-in details such as names and serial numbers
CAST STEEL
Cast steel copes better with cold climates. Minor repairs can be carried out by suitably qualified welders, and bollards may even be welded to existing steel structures. Regular inspection and maintenance may be required to ensure a long and trouble-free working life. Impact testing is strongly recommended for cold-weather applications.
Specification
The sizes listed above are partial and only for reference, other sizes besides the above can be customized. Contact us for specific model capacities and safety factors.
Installation Details
Bollard & Accessories
1. Single Bitt Bollard 2. Anchors 3. Bolts & Nuts P.S. We provide customized services not only for bollard specification, but also for project design, installation and specified accessories to meet various requirements of different customers.
Bollard Selecting
Bollard design relates many aspects and various factors shall be taken into account. Here are some common factors designers require to consider:
• Draft changes
• Water level changes
• Forces due to wind and currents
• Forces due to waves, swell and tides
• Forces due to ice (if required)
• The type, size and ang e of mooring lines
• Anchor type and mounting method
• Overload prevention

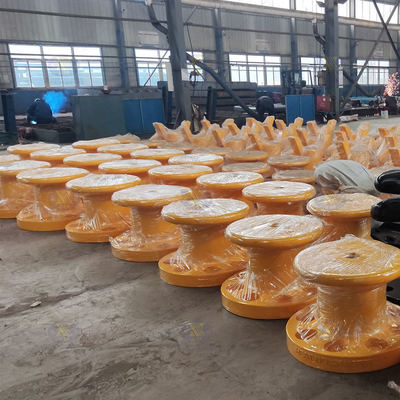

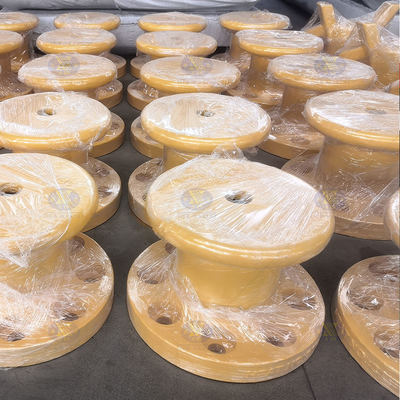

Production Process
