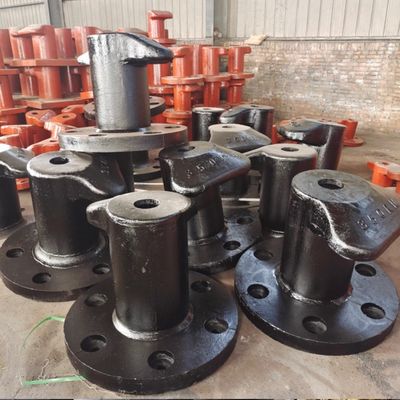

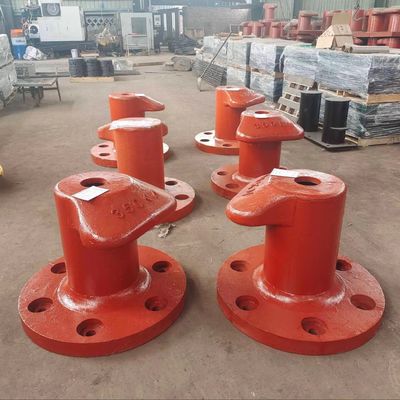

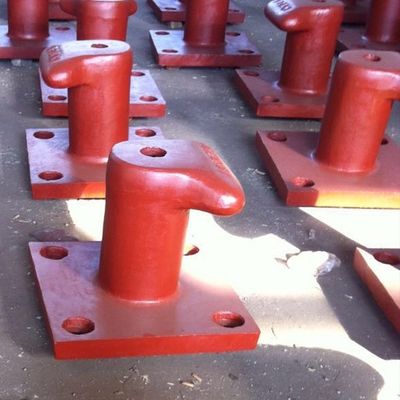

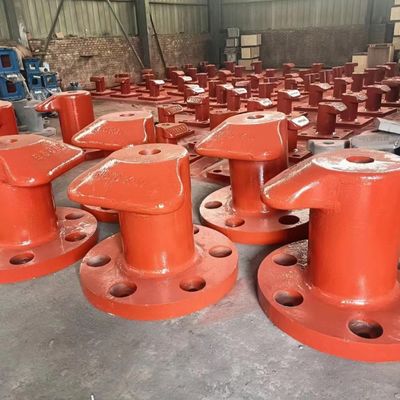

350KN T Type Cast Iron HT200 Port Bollard Dock Bollards Galvanized Marine Boat Ship Shore

Material and Manufacturing

● Cast Iron: Generally, HT200 gray cast iron is selected. It has excellent casting properties, shock absorption, and wear resistance, enabling it to withstand the tensile force and impact when mooring ships. In some cases, ductile iron is also used. Ductile iron has higher strength and toughness than gray cast iron, which can extend the service life and reliability of the T - shaped cast - iron bollard.

● Anchor Bolts and Connecting Components: Anchor bolts usually adopt high - strength steel, such as Q345, etc., to ensure the connection strength with the wharf foundation. Nuts, washers, etc. generally use ordinary carbon steel or stainless steel to prevent rust and corrosion and ensure the long - term stability of the connection.

● Core Filler: Elastic materials such as rubber and polyurethane can be used as the core filler. When mooring ships, it can play a buffering role, protect the mooring ropes from wear, and also reduce the collision force between the ship and the bollard.

● Mold Making: Based on the design dimensions and shape of the T - shaped cast - iron bollard, materials such as wood, metal, or plastic are used to make the mold. For mass production, metal molds are often employed. These metal molds have high precision and strong durability, ensuring the dimensional accuracy and surface quality of the castings.

● Casting Process: Processes like sand casting or lost - foam casting are adopted. In sand casting, the prepared molding sand is filled into the mold, compacted, and then the mold is removed to form the casting cavity. In lost - foam casting, a foam plastic model is first made, coated with refractory materials, and then buried in dry sand. When pouring, the foam plastic model gasifies and disappears, and the molten metal fills the cavity. The molten cast - iron liquid is heated to an appropriate temperature, generally around 1400℃ - 1500℃, and then poured into the casting cavity. After cooling and solidifying, the blank of the T - shaped cast - iron bollard is formed.

● Machining: The blank is first rough - machined to remove excess burrs, flash, etc., leaving a margin for subsequent finishing. Then, finishing operations are carried out, including grinding and polishing the surface of the bollard to achieve the surface roughness and dimensional accuracy required by the design. Precise machining is performed on the installation holes, connection parts, etc., to ensure the fitting accuracy with components such as anchor rods and nuts.

● Surface Treatment: Surface treatment methods such as hot - dip galvanizing and spraying anti - corrosion paint are used. Hot - dip galvanizing can form a dense zinc layer on the surface of the bollard, effectively preventing the corrosion of cast iron by seawater, air, etc. Spraying anti - corrosion paint can further improve its corrosion resistance. Also, different colors of paint can be selected according to needs, serving the functions of aesthetics and identification.

1, High Load-bearing Capacity: Made of cast iron material, such as HT200, it has high strength and can withstand the large pulling force generated during the mooring of ships. It can meet the mooring force requirements of different specifications ranging from 50KN to 2000KN, ensuring the safety of ships during operations such as berthing and shifting.

2, Long-lasting Durability: The cast iron material itself has good wear resistance and fatigue resistance. During long-term use, it can withstand the friction of mooring ropes and the erosion of the natural environment, and is not prone to damage, thus having a long service life.

3, Corrosion resistance: The surface of the cast iron mooring bollard is usually treated with anti-rust measures, such as applying anti-rust paint or other anti-corrosion coatings. This can effectively resist corrosive substances in the natural environment like seawater and sea breeze, reduce the risk of rust and corrosion, and extend the service life of the mooring bollard.

4, Less maintenance cost: Due to its good durability and corrosion resistance, under normal use, there is no need for frequent maintenance and replacement, thus reducing the later maintenance cost.

Technical parameters:

Application Scenarios:

1. Inland River Freight Waterways: It helps inland river cargo ships dock, facilitating the loading and unloading of goods and ensuring the smooth flow of inland river logistics.

2. Seaside Tourist Scenic Areas: It enables the mooring of sightseeing cruise ships, allowing tourists to board and disembark safely and enhancing the tourism experience.

3. Bulk cargo terminal: It can bear the mooring of large bulk carriers, ensuring the stability of the vessels during the loading and unloading of coal and ores.

4. Container terminal: It helps container ships dock, facilitating the rapid loading, unloading and transshipment of containers.

5. Fishing Port: Meet the docking needs of fishing boats, making it convenient for fishermen to unload catches and replenish supplies, and contributing to fishery production.

Support and Services:

1.Professional Technical Team

Our technical team is led by senior industry experts, and all members possess solid professional knowledge and rich practical experience. Starting from the research and development design stage of the T-shaped cast iron mooring bollard, the team uses advanced simulation software to accurately analyze the force conditions of the product under different working conditions, and continuously optimizes the product structure to ensure that it has excellent strength and stability. During the production process, technicians strictly control every process. From the inspection of raw materials to the delivery of finished products, every link adheres to strict quality standards, ensuring the reliability of product quality and providing customers with mooring bollards of superior performance.

2.Comprehensive After-sales Service Guarantee

We provide 7×24 hours after-sales response, so customers can contact us at any time when they encounter problems. During the product installation process, after-sales personnel will provide remote guidance and, if necessary, on-site assistance to ensure the smooth installation. Within the warranty period, if there are quality problems with the product, we will provide free repair or replacement services. After the warranty period, we will still provide long-term technical support and preferential accessory supply services, and regularly conduct follow-up visits to customers to understand their usage situations and solve problems in a timely manner.

For our T-shaped cast iron mooring bollard, professional forces escort it throughout the whole process, from design and research and development to after-sales guarantee. The professional technical team endows the product with excellent performance, and the comprehensive after-sales service relieves you of any worries. Choosing us means choosing a reassuring and reliable ship mooring solution. We look forward to working with you to jointly promote the development of the ship mooring industry.

In addition, we offer a range of services to complement our mooring bollards products. These include custom design and engineering, installation and commissioning, and repairs and upgrades. Our goal is to provide a comprehensive solution to meet your mooring needs, from product selection to ongoing support.
