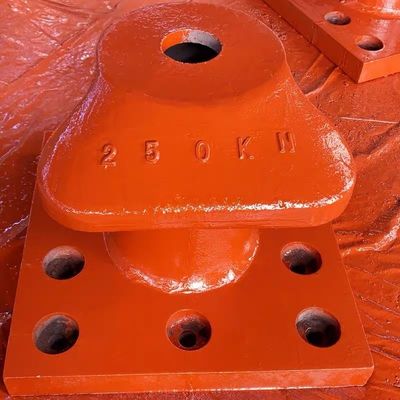

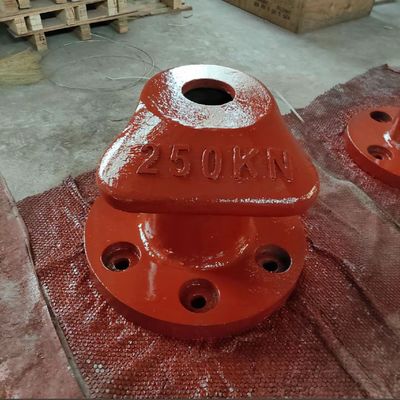

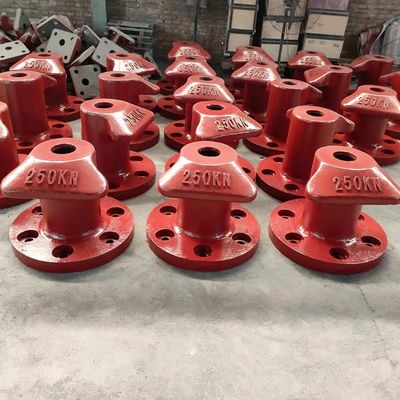

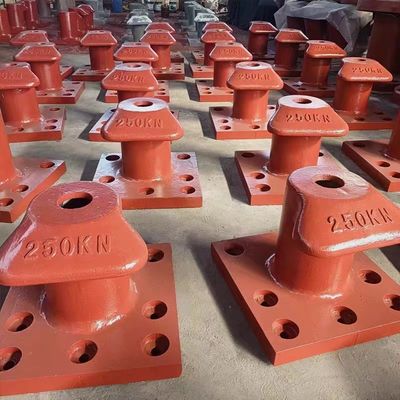

Tee Type 250KN Cast Iron HT200 Boat Mooring Bollard Galvanized Maritime Bollard

Material and Manufacturing:

● Main Material: Our T - shaped cast - iron mooring bollards are made of high - quality HT200 gray cast iron. Compared with ordinary materials, its tensile strength is increased by 20%. This enables it to better withstand the strong pulling force during ship mooring, reducing the risk of damage caused by overloading. Its excellent casting properties make the formation of complex shapes more precise, ensuring that every detail meets strict engineering standards.

● Casting: Sand casting is widely used. First, a wooden or metal mold is made and placed in a sand box. The sand is filled and compacted to form a cavity. Then, the molten cast iron is poured in. After cooling and solidifying, the sand mold is broken to take out the casting. Lost - foam casting is also commonly used. A foam plastic mold is made, coated with refractory paint, and then buried in dry sand and compacted by vibration. During casting, the foam plastic gasifies and disappears, and the molten metal fills to form the shape, which offers higher dimensional accuracy and better surface quality.

● Machining: The cast blanks need to be machined. Operations such as turning, drilling, and milling are carried out on parts like the installation surface and mooring holes to ensure dimensional accuracy and surface roughness. Shot blasting is used for rust removal, which can remove rust and impurities and improve surface adhesion. After that, anti - corrosion treatments such as painting or galvanizing are carried out.

Features:

1. Impact Resistance: With internal structure reinforcement, it can remain stable and undamaged when facing the impact force of ships docking.

2. High Precision: Manufactured by precision casting technology, it has accurate dimensions and can perfectly fit with dock facilities during installation.

3. Temperature - Resistant: It has stable performance in high - temperature and low - temperature environments, and will not deform or crack due to temperature changes.

4. Easy Installation: With standardized components and a supporting installation guide, the construction difficulty is low, saving labor and time costs.

5. Strong Adaptability: It has a rich variety of specifications and models, ranging from 50KN to 2000KN. It can be flexibly selected according to different berth capacities and wharf structural types to meet the operation requirements of various tonnage ships for berthing, mooring, shifting, and trimming at the wharf.

Technical Parameters:

Application Scenarios:

1. Container Terminal: Enable container cargo ships to dock safely, facilitating the rapid loading, unloading and transshipment of containers, and improving logistics efficiency.

2. Passenger Terminal: Ensure the stable mooring of passenger ships, making it convenient for passengers to board and disembark safely, and enhancing the travel experience.

3. Industrial Terminal: Assist ships transporting industrial raw materials and finished products to dock, ensuring the smooth flow of factory production and shipment processes.

4. Ferry Terminal: Provide a place for ferries traveling between the two banks to dock, ensuring the smooth progress of daily ferry operations and facilitating the passage of people and vehicles.

5. Fishing Port: Meet the docking needs of fishing boats, making it convenient for fishermen to unload catches and replenish supplies, and contributing to fishery production.

Support and Services:

1.Professional Technical Team

Our team is composed of experienced engineers and technical experts who have been deeply engaged in the field of ship mooring for many years. They have in - depth knowledge of various complex dock environments and ship mooring requirements. From the project's preliminary design stage, based on the actual layout of your dock, the types of ships, and the berthing frequency, we accurately plan the optimal installation positions and quantities of T - shaped cast iron mooring bollards. During the installation process, on - site technical guidance is provided to ensure that each bollard is installed in strict accordance with standards, guaranteeing its stability and reliability.

In the subsequent usage process, the technical team will also be available at any time to answer your questions and provide professional technical advice.

2.Comprehensive After - sales Service

Our after - sales service system is complete. The product comes with warranty period. If there are quality problems during the warranty period, we will provide free maintenance or replacement. We have established a 24 - hour after - sales response mechanism. Once we receive customer feedback, the after - sales team will act quickly. Through methods such as phone calls, remote videos, or on - site inspections, we will quickly diagnose and solve problems. We regularly follow up with customers, actively collect usage opinions, continuously optimize products and services, and fully guarantee your usage experience.

Choose our T-shaped cast iron mooring bollards, and you'll have no worries about quality and service. We have strict control from the source to after-sales. With strength and sincerity, we'll safeguard your port operations. We're eager to join hands with you, take practical actions to propel the ship mooring industry to new heights, and jointly create a brilliant future.

In addition, we offer a range of services to complement our mooring bollards products. These include custom design and engineering, installation and commissioning, and repairs and upgrades. Our goal is to provide a comprehensive solution to meet your mooring needs, from product selection to ongoing support.

Any question please let us know ,our JinCheng maritime will provide you the best service with 7*24 hours ~
