High-Strength Alloy Steel HHP Stockless Marine Anchor 50-10000kg ABS BV DNVGL Certified
| Place of Origin | China |
|---|---|
| Brand Name | JC Maritime |
| Certification | CCS.ABS.LRS.BV.GL.DNV.NK.RMRS |
| Model Number | Admiralty Anchor |
| Minimum Order Quantity | 1PCS |
| Price | USD 800~1200 PER PIECE |
| Packaging Details | 1. Bare packed: packed in bundles 2. Packed in iron drums then on pallets 3. Packed in woodencase 4. Required by cllent shipping |
| Delivery Time | 10-45 Days |
| Payment Terms | T/T,Western Union,L/C,MoneyGram,D/A,D/P |
| Supply Ability | 15000 Metric Ton/Metric Tons Per Year |
Product Details
| Product Name | Size 50-10000kg CJD-14 HHP Anchor High Holding Power Marine Anchor | Material | High - Strength Alloy Steel/Stainless Steel/Carbon Steel |
|---|---|---|---|
| Surface Finishing | Polished,Spray Paint,Galvanized | Color | Black/Red/Yellow Or Customer Demand |
| Certificate | ABS,BV,DNVGL,KR,LR,NK,RINA,CCS,PRS,IRS,RS,CRS Certificated | Design | Simple And Sturdy |
| Port Of Loading | Qingdao, China |
Product Description

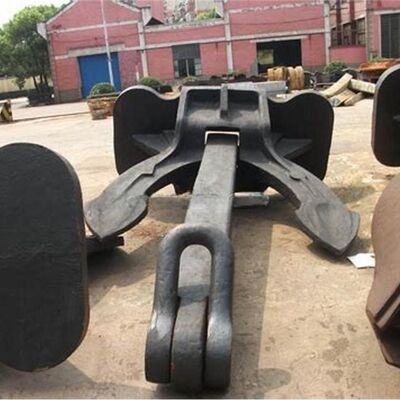

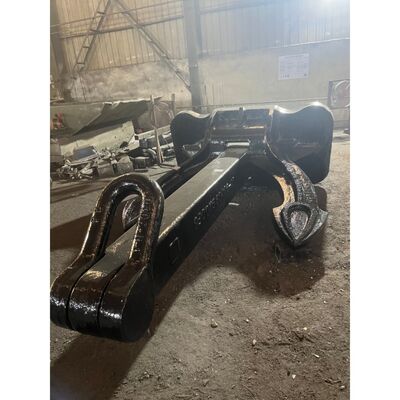

SPEK HHP Stockless Anchor Bitumen Paint Surface Marine Anchor
The Spek anchor is the mainstream type of stockless anchor. It boasts core advantages such as sturdy structure, convenient operation, reliable grip, and strong adaptability. It is widely used in merchant ships, engineering vessels, cruise ships, and yachts, and is suitable for various seabeds including sand, mud, and gravel. The mainstream models include Type 95, Type SR, and Type M, which can cover weight requirements ranging from 40kg to 26,000kg.
Material Advantages
- Stable pulling force: On regular seabeds (sand, mud), the pulling force performance is reliable, meeting the daily anchoring needs of merchant ships with high cost-effectiveness.
- Easy operation: The absence of cross-bar design simplifies the retraction, storage and reassembly process, reducing crew operational intensity and improving work efficiency.
- Low maintenance cost: The cast steel structure is sturdy and durable with adequate surface protection treatment. Daily maintenance only requires regular inspection of accessories and surface coatings.
Manufacturing Process
Our manufacturing process strictly adheres to marine anchor casting standards and offshore mooring equipment strength requirements, centered on structural precision, material strength and toughness, and corrosion resistance compliance.
- Raw Material Preparation and Mold Design: Select high-strength cast steel (ZG230-450) or premium marine carbon steel. Design sand molds based on anchor specifications with thickened sections at critical junctions.
- Monolithic Casting: Molten cast steel (1500-1600°C) is injected into molds using gravity casting for uniform filling without dead zones or porosity.
- Structural Reinforcement and Precision Machining: Critical load-bearing areas undergo forging reinforcement. Connection holes are machined to match anchor chain specifications with secure welding and non-destructive testing.
- Surface Anti-Corrosion Treatment: Sandblasting rust removal followed by dual-layer coating or hot-dip galvanizing for effective seawater corrosion resistance.
- Finished Product Inspection and Quality Control: Comprehensive visual inspection, performance testing (tensile strength ≥400MPa), corrosion resistance testing, and classification society certification.
- Packaging and Shipping: Secure packaging on wooden pallets or steel frames with moisture-proof protection, including inspection reports and certification documents.
Key Features
- Stockless compact design: Eliminates traditional crossbar, facilitating storage in anchor holes and reducing deck occupation
- Structural strength: Cast in one piece using ZG200-400 marine cast steel with reinforced crown design for enhanced gripping stability
- Damage prevention: Anchor claws naturally point upwards when retrieved, avoiding damage to hull outer plates
- Balance optimization: Low center of gravity design improves bottom gripping efficiency and stability
- Wide specifications: Weight range from 40kg to 26,000kg, compatible with anchor chain diameters of 12.5mm to 162mm
- Certification compliance: Meets CCS, ABS, LR, DNV, and other mainstream classification society standards
Technical Parameters
Applications
- Commercial shipping: Bow anchors or backup anchors for bulk carriers, container ships, and oil tankers
- Cruise ships and luxury yachts: Type SR models with low center of gravity and damage prevention design
- Engineering vessels: Positioning anchors for dredgers, cranes, and platform supply ships
- Fishing and small vessels: Main anchors for fishing boats and work boats with compact storage design
- Marine facilities: Permanent mooring anchors for buoys, lighthouse ships, and offshore wind power platforms
Selection Guidelines
Match anchor weight with ship's deadweight tonnage and anchor chain specification according to classification society norms. For sandy/mud-bottomed seabeds, Type 95 is preferred; for complex sea conditions or large ships, Type SR is recommended. Ensure anchor chain undergoes tension testing to match anchor claw strength for enhanced system reliability.
Support and Services
After-sales consultation: 24/7 customer service for specification selection, usage methods, and maintenance guidance.
Quality assurance: Backed by decades of marine hardware manufacturing expertise with rigorous testing including load-bearing, corrosion resistance, and seabed simulation trials.
Customization services: Available for size, material, and surface treatment to meet unique vessel and project requirements.
With class-certified quality, robust construction, and reliable performance, our Spek anchor is a trusted choice for shipowners and operators worldwide. It meets the strictest safety standards while delivering cost-effective, long-term mooring solutions for diverse marine applications.
Custom specifications available: We can customize anchor specifications according to your vessel's unique requirements. Contact us today for detailed technical drawings and quotation!
