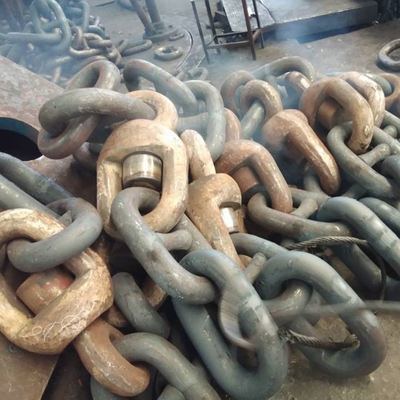

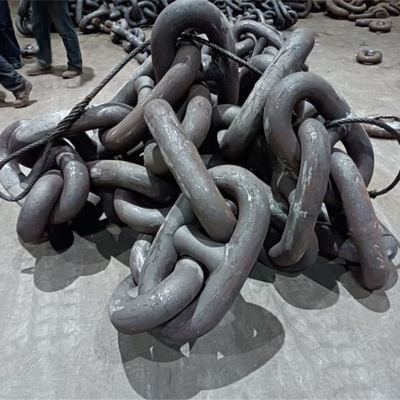

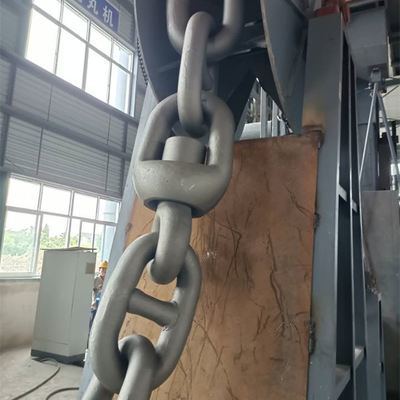

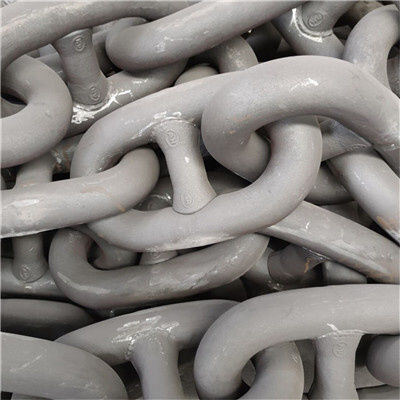

U2 U3 Grade High-Strength Alloy Steel Marine Anchor Chain with Stud Link Design for Corrosion Resistance
| Place of Origin | China |
|---|---|
| Brand Name | JC Maritime |
| Certification | CCS.ABS.LRS.BV.GL.DNV.NK.RMRS |
| Model Number | U1 U2 U3 |
| Minimum Order Quantity | 27.5 Meters |
| Price | USD 800~1200 PER PIECE |
| Packaging Details | 1. Bare packed: packed in bundles 2. Packed in iron drums then on pallets 3. Packed in woodencase 4. Required by cllent shipping |
| Delivery Time | 10-45 Days |
| Payment Terms | T/T,Western Union,L/C,MoneyGram,D/A,D/P |
| Supply Ability | 15000 Metric Ton/Metric Tons Per Year |
Product Details
| Product Name | Marine Anchor Chain | Type Number | U1 U2 U3 |
|---|---|---|---|
| Material | High - Strength Alloy Steel/Stainless Steel/Carbon Steel | Surface Finishing | Polished,Spray Paint,Galvanized |
| Color | Black/Red/Yellow Or Customer Demand | Certificate | ABS,BV,DNVGL,KR,LR,NK,RINA,CCS,PRS,IRS,RS,CRS Certificated |
| Design | Simple And Sturdy | Port Of Loading | Qingdao, China |
| Highlight | U3 grade marine anchor chain,high-strength alloy steel anchor chain,stud link corrosion resistant anchor chain |
||
Product Description
U2 U3 Grade Marine Anchor Chains for Ships - Stud Link Design
High-performance steel forging marine mooring & anchor chain with black coating, available in both stud and studless link types. Professionally engineered for marine anchoring and mooring systems of various vessels and offshore facilities, featuring excellent structural strength, seawater corrosion resistance and load-bearing capacity.
Product Overview
Material Advantages
Adopts high-quality marine special alloy steel round bar, main grades include CM490 (U2 grade). The steel forging process optimizes the internal metal structure, eliminating internal stress and significantly improving the chain's tensile, impact and fatigue resistance.
Stud Link Type
- Internal reinforcing studs provide stable structure resistant to deformation
- Suitable for heavy load anchoring of large ships and offshore engineering
- Nominal diameter range: 12.5mm - 120mm
- Standard link size: inside length 4D, outside width 3.6D (D = nominal diameter)
- Standard section length 27.5m, customizable non-standard lengths available
Studless Link Type (Open Link)
- No internal studs, lighter weight
- Easy to match with large shackles, avoiding stud loosening faults
- Nominal diameter range: 12.5mm - 70mm
- Ideal for medium and small vessels, offshore permanent mooring and auxiliary anchoring
- Proof load and breaking load meet U2/U3 grade international standards
Manufacturing Process
- Raw Material Preparation: Select low-carbon steel wire rod with surface treatment to remove impurities
- Chain Forming and Welding: Specialized equipment forms chain links with flash butt welding and shaping
- Heat Treatment: Overall tempering treatment to eliminate stress and improve strength
- Hot-Dip Galvanizing: Immersion in molten zinc at 440-460℃ for corrosion protection
- Final Inspection: Comprehensive quality checks including zinc layer adhesion and dimensional verification
Technical Drawings
Key Features
- Corrosion Resistant: Hot dip galvanized or black bitumen coating with custom color options
- Comprehensive Specifications: Diameter ranges 12.5mm-130mm, standard length 27.5m per shot
- Certified & Reliable: Manufactured to IACS UR W29, UR W18, and IMORULES standards with SGS certification
- Safety Factor: 4:1 with proof load and breaking load strictly compliant with industry standards
Technical Parameters
Chain Diameter: 12mm to 150mm (customizable based on vessel tonnage)
Link Pitch: Standard ratios for uniform force distribution
Length: Standard lengths 25m, 50m, 100m per section; custom lengths available
Surface Treatment: Hot-dip galvanizing (zinc coating ≥85μm) with optional epoxy coating or stainless steel
Link Pitch: Standard ratios for uniform force distribution
Length: Standard lengths 25m, 50m, 100m per section; custom lengths available
Surface Treatment: Hot-dip galvanizing (zinc coating ≥85μm) with optional epoxy coating or stainless steel
Applications
Widely used in cargo ships, passenger ships, offshore platforms, fishing boats, and yachts. Suitable for temporary mooring in harbors, permanent mooring in deep waters, and offshore oil and gas development mooring systems.
Certification & Load Performance
Certifications: CCS, ABS, BV, DNV-GL, LR, NK, KR, RINA, IRS
U2 Grade: Proof load 41.2KN-1280KN, breaking load 82.6KN-2560KN
U3 Grade: Proof load 56.4KN-1810KN, breaking load 112.8KN-3620KN
Standard Weight: 85.41kg-1032kg per 27.5m
U3 Grade: Proof load 56.4KN-1810KN, breaking load 112.8KN-3620KN
Standard Weight: 85.41kg-1032kg per 27.5m
Customization & After-sales Service
- Non-standard customization of diameter, length, grade and surface treatment
- Free product samples available (freight collect) with 12-hour quick response
- Flexible delivery: 15-30 days for regular orders, customizable for bulk orders
- FOB Qingdao port optional with T/T, L/C at sight payment terms
24/7 Support: Any questions? Our JinCheng maritime team will provide you the best service.
