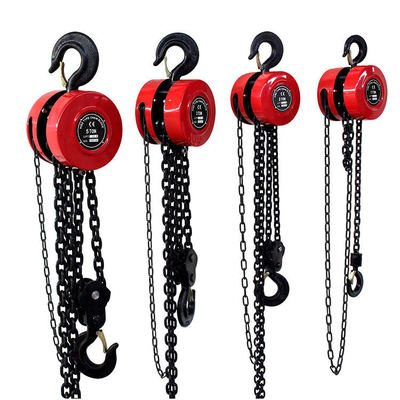

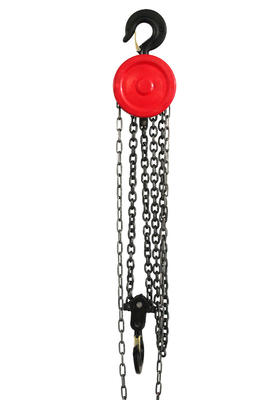

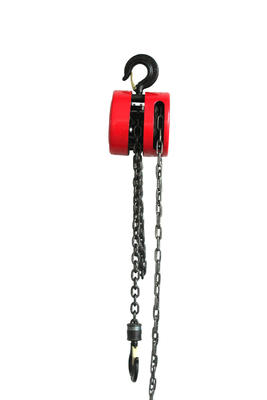

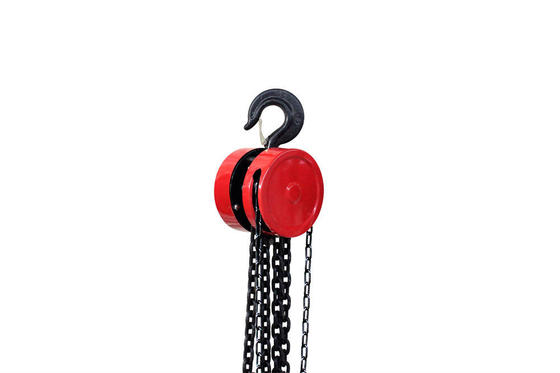

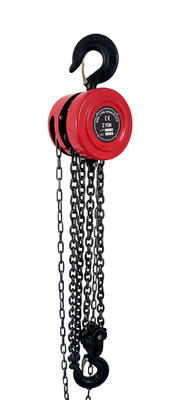

Manual Pully Block 1t 2 Ton 3t 5t 10t 3m 6m G80 Chain Hoist Hsz Type Hand Chain Block

Manual Pully Block 1t 2 Ton 3t 5t 10t 3m 6m G80 Chain Hoist Hsz Type Hand Chain Block

Product Description:

Material Advantages:

The lifting chain is made of G80 grade manganese alloy steel, with a tensile strength of 800MPa, 2.5 times that of ordinary steel, and a breaking strength exceeding the rated lifting capacity by 5 times. It undergoes multiple forging and tempering heat treatments, achieving a surface hardness of HRC45-50. It also features double rust protection through galvanizing and applying anti-rust oil, making it suitable for humid and other complex environments.

The hook is made of high-strength alloy steel, manufactured through forging, heat treatment, and polishing processes. It possesses high load-bearing capacity and impact resistance, and is not easily broken even under slight overload. It is also equipped with a safety buckle to prevent the load from falling.

The internal gears, particularly the core transmission gears, are made of 20CrMnTi alloy steel. This material, combined with carburizing heat treatment, significantly improves the wear resistance and toughness of the gears, reducing gear transmission losses during lifting operations and extending the equipment's service life.

The outer casing is made of high-strength alloy steel. Some models have a square body or a design with rolled edges and reinforcing ribs, which not only provides strong impact resistance and effectively protects the internal gears, brakes and other core components, but also improves the overall structural stability of the machine.

Manufacturing Process:

Raw Material Control: G80 grade alloy steel and 20CrMnTi alloy steel are procured. Before warehousing, spectral testing and other methods are used to ensure that the materials meet basic standards such as strength and hardness, preventing substandard raw materials from entering the production process.

Component Processing: Steel is cold-extruded to form pre-designed component shapes. Then, machining processes such as drilling, milling, and planing are used to complete precision operations such as gear tooth machining and component drilling. The chain undergoes five forging processes and two heat treatments to enhance structural strength.

Surface Treatment: Components undergo degreasing, pickling, and phosphating processes to remove surface impurities and oxide layers. Afterward, the housing and hooks are sprayed with anti-rust paint, and the chain is galvanized and coated with anti-rust oil to improve overall corrosion resistance.

Assembly and Debugging: Components are assembled sequentially. Gears are assembled into the housing, the lifting sprocket and transmission structure are connected, the hook and chain are installed, and finally the handle and braking device are assembled. After assembly, the transmission smoothness and braking sensitivity are tested to ensure smooth lifting operations.

Rigorous testing: Multiple testing procedures are carried out, including raw material material testing, gear hardness testing, 100 consecutive braking tests of the braking system, and lifting tests of finished products at 1.2 times the rated load, as well as low temperature and waterproof tests. Only products that pass the tests can leave the factory.

Features:

Outstanding Safety Performance: Utilizing a ratchet friction plate one-way braking system, it automatically brakes under load. Combined with a long-shaft anti-reverse washer limit device, it prevents the sprocket and nut from locking when the chain reaches the bottom, eliminating the safety hazard. Some models also feature an anti-chain-jump mechanism to prevent chain slippage during lifting.

Effortless and Flexible Operation: Optimized transmission ratio and integrated bearing design significantly reduce manual pulling force. Lightweight, with some models being 20% ​​lighter than similar products, it is easy to carry and transport. Some models can be modified for inverted installation, suitable for special installation scenarios such as stage setups.

High Durability: Core components are made of high-strength alloy steel and undergo special heat treatment, along with multiple rust-proof processes. The equipment is not only wear-resistant and corrosion-resistant but also operates stably in harsh environments such as outdoor humidity and mining dust, extending its service life far beyond ordinary hand chain hoists.

Convenient Maintenance: The simple structural design and highly interchangeable parts allow for routine maintenance, requiring only periodic checks of chain tension and replenishment of gear lubricant. No complex professional skills are required, reducing operating costs.

Technical Parameters:

Applications:

Construction and Infrastructure: Suitable for hoisting steel bars and small mechanical equipment on construction sites, as well as the inverted installation of lighting and sound equipment in stage construction, enabling efficient operation even without power.

Industrial Production: Widely used in equipment installation and maintenance in factory workshops and mines, and for hoisting small tanks and pipelines in chemical plants, adaptable to various indoor and outdoor operating scenarios.

Logistics and Ports: Used for cargo loading and unloading and auxiliary container hoisting in docks, shipyards, and warehouses, especially suitable for small-scale, short-distance hoisting operations that cannot be covered by large lifting equipment.

Emergency and Field Scenarios: Can be used for emergency repairs in open-air engineering projects and lifting materials during field exploration. Because it does not require power, it plays a crucial role in emergency situations such as power outages or lack of power supply.

Support and Services:

After-sales consultation: We provide 24/7 customer service to answer customer questions , such as specification selection, usage methods, and maintenance points.

Regular follow-up visits: The manufacturer may conduct regular follow-up visits to customers to understand the usage and collect customer feedback in order to continuously improve product quality and service levels.

with its excellent quality and attentive service, builds a solid guarantee for your maritime career. Choosing us means choosing safety, efficiency, and worry - free operation. Embark on a new journey of navigation, starting from choosing our products!

Any question please let us know ,our JinCheng maritime will provide you the best service with 7*24 hours ~
