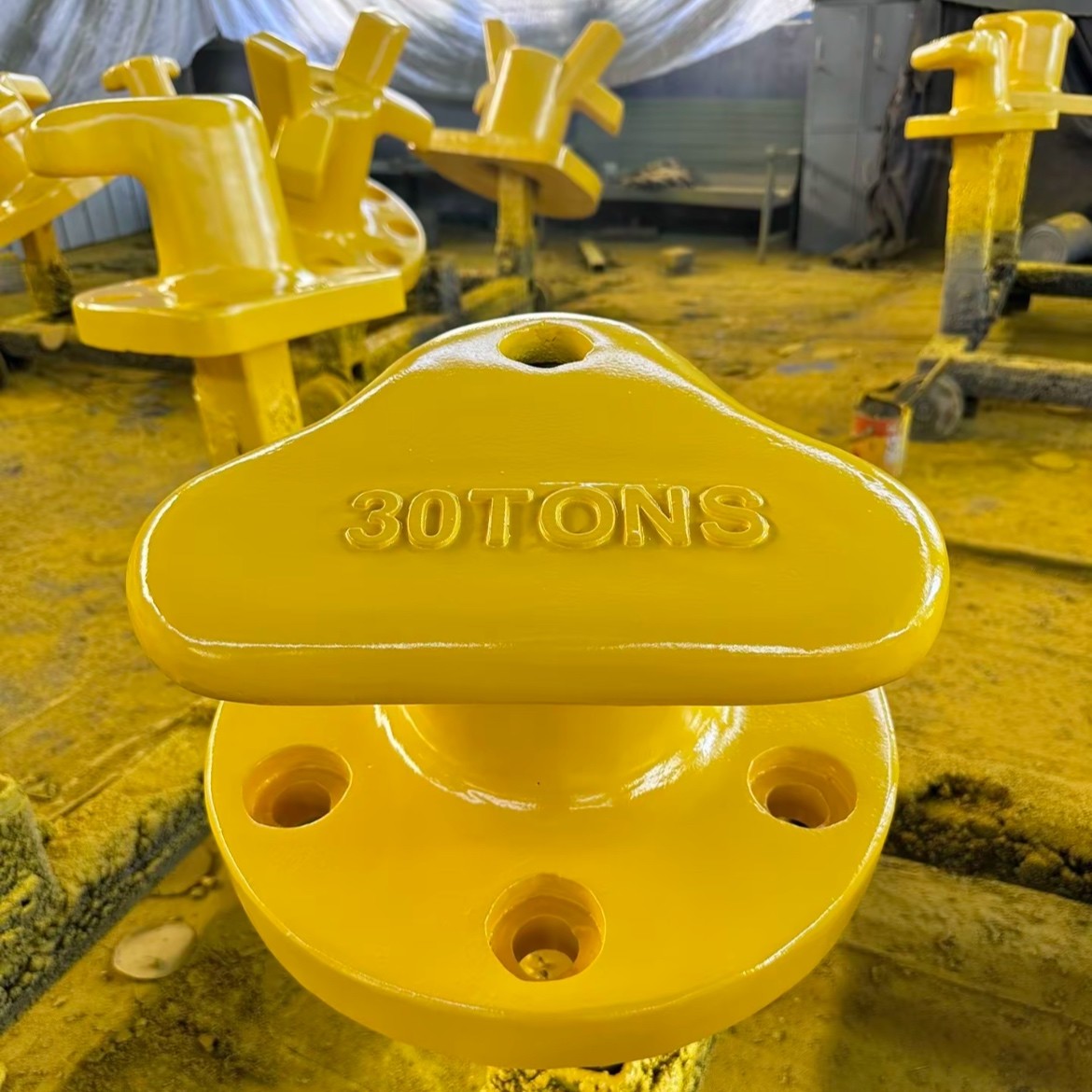

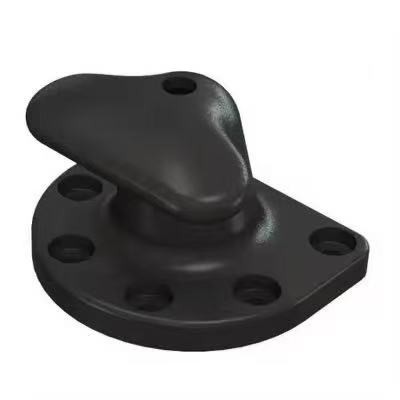

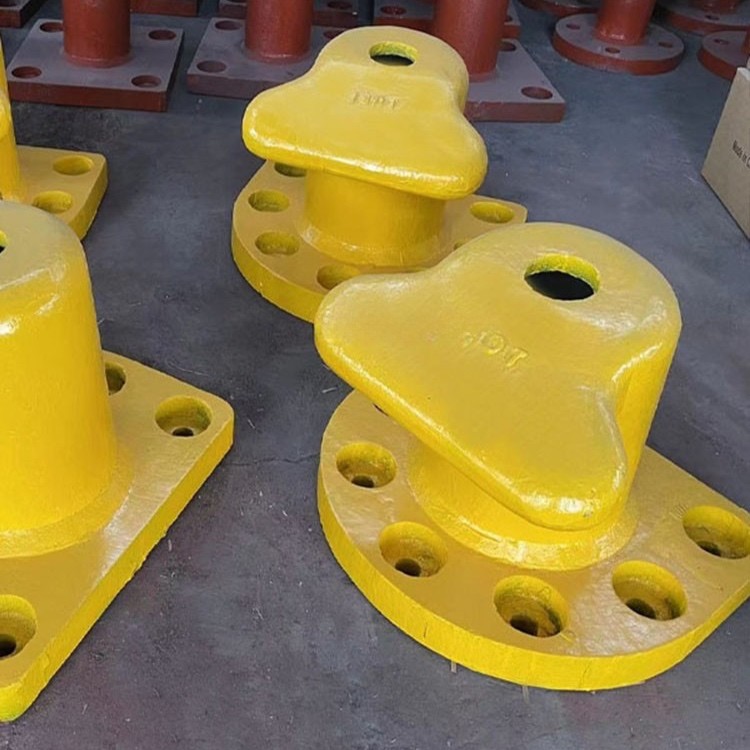

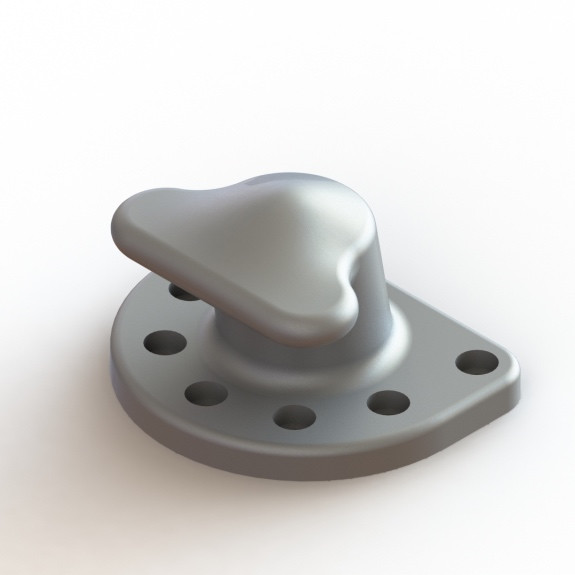

30T T Head Cast Iron Yacht Bollard Dock Bollards Painted Bitumen large vessel

30T T Head Cast Iron Yacht Bollard Dock Bollards Painted Bitumen large vessel

Material and Manufacturing:

Materials

● Primary Material: Generally, HT200 cast iron is selected. This material has good strength, enabling it to withstand the large tensile forces and external forces generated during ship mooring, ensuring the stability of the bollard. It also has excellent wear resistance, so that friction with mooring ropes during long - term use will not easily cause surface damage. Its casting performance is outstanding, facilitating casting into complex T - shaped structures. Moreover, the cost is relatively low, which can effectively control the product cost while ensuring performance.

● Auxiliary Materials: The anchor rods usually adopt high - strength carbon steel or alloy steel, which have high tensile strength and good toughness, ensuring the firm connection between the bollard and the dock foundation. Nuts and washers are generally made of metal materials that match the material of the anchor rods to guarantee the reliability and stability of the connection. The core filling material can be concrete or other high - strength filling materials, which are used to enhance the overall structural strength of the bollard and improve its impact and deformation resistance.

Manufacturing

● Mold Making: Based on the design dimensions and shape of the T - shaped cast - iron bollard, materials such as wood, metal, or plastic are used to make the mold. For mass production, metal molds are often employed. These metal molds have high precision and strong durability, ensuring the dimensional accuracy and surface quality of the castings.

● Casting Process: Processes like sand casting or lost - foam casting are adopted. In sand casting, the prepared molding sand is filled into the mold, compacted, and then the mold is removed to form the casting cavity. In lost - foam casting, a foam plastic model is first made, coated with refractory materials, and then buried in dry sand. When pouring, the foam plastic model gasifies and disappears, and the molten metal fills the cavity. The molten cast - iron liquid is heated to an appropriate temperature, generally around 1400℃ - 1500℃, and then poured into the casting cavity. After cooling and solidifying, the blank of the T - shaped cast - iron bollard is formed.

● Machining: The blank is first rough - machined to remove excess burrs, flash, etc., leaving a margin for subsequent finishing. Then, finishing operations are carried out, including grinding and polishing the surface of the bollard to achieve the surface roughness and dimensional accuracy required by the design. Precise machining is performed on the installation holes, connection parts, etc., to ensure the fitting accuracy with components such as anchor rods and nuts.

● Surface Treatment: Surface treatment methods such as hot - dip galvanizing and spraying anti - corrosion paint are used. Hot - dip galvanizing can form a dense zinc layer on the surface of the bollard, effectively preventing the corrosion of cast iron by seawater, air, etc. Spraying anti - corrosion paint can further improve its corrosion resistance. Also, different colors of paint can be selected according to needs, serving the functions of aesthetics and identification.

● Quality Inspection: Visual inspection is carried out to check whether there are defects such as cracks, sand holes, and blowholes on the surface of the bollard, and whether the surface roughness and dimensions meet the design requirements. Non - destructive testing methods such as ultrasonic testing and radiographic testing are used to detect internal defects such as shrinkage porosity and inclusions. Mechanical property tests, such as tensile tests and impact tests, are conducted on the bollard to ensure that its performance indicators such as strength and toughness meet the usage requirements.

Design and Structure

In port facilities, mooring bollards are crucial equipment for ensuring the safe berthing and mooring of vessels. Today, we will introduce to you in detail a T - shaped cast - iron mooring bollard with outstanding performance. Its unique design and structure can better meet the needs of modern port operations.

Design Concept: The Integration of Safety and Efficiency

The design of this T-shaped cast iron mooring bollard is closely centered around the safety and efficiency of ship mooring operations. From the ship's berthing, docking, to operations such as shifting berths and turning around, the mooring bollard needs to withstand various complex forces. Its design fully takes into account different ship types, tonnages, and dock operating environments to ensure reliable mooring support for ships under all working conditions.

For example, in the design of the height, diameter, and the size of the T-shaped structure of the mooring bollard, precise calculations and simulation analyses have been carried out. A reasonable height can not only ensure that the ship's mooring ropes can be easily tied, but also prevent the ropes from being easily washed off by the waves in bad weather. Appropriate diameter and structural dimensions endow the mooring bollard with sufficient strength and stability to withstand the tension and impact force when the ship is moored.

Structural Composition: Guarantee of Durability

1. Shell: It is made of high-quality cast iron, which has good abrasion resistance, corrosion resistance, and high strength. The properties of cast iron enable it to be used stably for a long time in the humid and high-salt port environment, and it is not easy to rust or be damaged. The T-shaped design of the shell increases the structural stability, allowing it to remain firm when subjected to lateral forces.

2. Anchor Bolts: Anchor bolts are important components connecting the bollard to the dock foundation. They are usually made of high-strength steel. These bolts penetrate deep into the dock foundation and are closely matched with the anchor plate through nuts and washers, firmly fixing the bollard to the dock structure. The number and arrangement of anchor bolts are reasonably designed according to the specifications of the bollard and the bearing capacity of the dock to ensure that the bollard will not displace or loosen under various loading conditions.

3. Nuts, Washers, and Anchor Plates: These accessories work together to evenly distribute the tension of the anchor bolts, preventing damage to the dock foundation and the bollard during the tightening process. The nuts are made of high-strength materials and have good anti-loosening performance. Washers can increase the contact area and reduce stress concentration. The anchor plate further expands the force-bearing area, enhancing the connection reliability between the bollard and the dock foundation.

4. Core Filler: The core filler is filled inside the shell, playing a role in buffering and enhancing the structural integrity. Materials with good elasticity and compressive performance, such as rubber or special fillers, are generally selected. When the ship's mooring cable generates an impact force, the core filler can absorb part of the energy, reducing damage to the bollard and the dock structure.

Advantages and Features: Excellent Performance and Wide Application

1. High Strength and Stability: The T-shaped structure and high-quality cast iron material endow the bollard with outstanding strength and stability. It can withstand large mooring forces and is suitable for the mooring requirements of various large ships.

2. Good Corrosion Resistance: The cast iron material itself has certain corrosion resistance. After special surface treatment, it can better resist the erosion of harsh environments such as seawater and sea breeze, extend the service life, and reduce maintenance costs.

3. Convenient Installation: The rational structural design makes the installation process of the bollard relatively simple, reducing construction difficulty and time cost. Just connect the anchor rods firmly to the wharf foundation in accordance with the established installation specifications, and the installation can be completed.

4. Strong Versatility: This T-shaped cast iron bollard is applicable to various types of wharves, such as container terminals, bulk cargo terminals, passenger terminals, etc., and can meet the requirements of different port operations.

The T-shaped cast iron bollard, with its scientific design and sturdy structure, has become a reliable choice for port ship mooring. Whether in daily ship docking operations or when dealing with mooring requirements under adverse weather conditions, it can perform outstandingly and provide strong support for the safe operation of the port.

At our company, we are committed to providing our customers with the highest quality products and services. Our Mooring Bollards are no exception - they are designed to meet the highest standards of quality and reliability, ensuring that you get the best value for your money.

If you are looking for a reliable and durable solution for your quayside pier posts needs, look no further than our Mooring Bollards. With their superior quality and functionality, these bollards are the ideal choice for any marine application.

Features:

1. Sturdy and durable: Made of high-quality cast iron, it has a stable structure, can withstand high-intensity pulling force, ensures the safety of ships during berthing, and has a long service life.

2. T-shaped design: The unique T-shaped structure increases the winding area of the mooring rope, effectively prevents slippage, and makes the mooring operation easier and more convenient.

3. Easy installation: Complete with supporting installation components, the installation process is simple, and it can be quickly fixed in place at the wharf, reducing the construction difficulty and cost.

4. Anti-corrosion and rust-proof: The surface has undergone special anti-rust treatment to resist the erosion of seawater and sea breeze, and it can still operate stably in harsh environments.

Technical Parameters:

Application Scenarios:

1. Commercial Ports: It meets the docking requirements of large commercial vessels such as container ships and bulk carriers, helps these vessels to be moored steadily, and ensures the safe and efficient operation of cargo loading and unloading.

2. Ferry Terminals: It provides reliable mooring for ferries that dock frequently, facilitating passengers to board and disembark quickly, and ensuring the smooth operation of daily ferry services.

3. Fishing Ports: It is suitable for various types of fishing vessels. Whether they are returning from the sea fully loaded or setting out again after replenishment, it can ensure that the fishing vessels are docked stably.

4. Petrochemical Terminals: It can withstand the mooring force of special vessels such as oil tankers, providing safety guarantees for operations such as oil loading and unloading, and meeting the strict industrial operation requirements.

Installation and Maintenance:

1. Preparation before Installation: Before installation, determine the model and installation location of the T-shaped cast iron mooring bollard according to the actual usage requirements of the wharf and the scale of ship berthing. The installation location is generally preferably 0.5 - 0.8 meters away from the front line of the wharf. If it is too close, it is likely to be hit when the ship approaches or departs, and it is also unsafe for the mooring operation. If it is too far back, it will interfere with the operation of the loading and unloading machinery and may also damage the mooring ropes. At the same time, ensure that the foundation at the installation location is solid and flat, and clean up the surface debris and uneven parts to prepare for the subsequent installation.

2. Installation Process: Use a lifting device to hoist the mooring bollard to the designated location, align it with the pre-planned installation holes, insert the anchor bolts for preliminary fixation. Then, use tools such as a spirit level to carefully adjust the verticality of the mooring bollard to ensure that it is in a vertical and stable state. Finally, tighten the anchor bolts to complete the installation.

3. Maintenance: During daily maintenance, regularly check the surface of the mooring bollard for any cracks, deformations, rust, etc. If slight rust is found, carry out rust removal treatment in a timely manner. You can use tools such as a wire brush to remove the rust, and then apply anti-rust paint. If there are cracks or deformations, assess the degree of damage and replace it in a timely manner if necessary. At the same time, regularly check the tightness of the anchor bolts and tighten them in a timely manner if they are loose to ensure the stability of the mooring bollard.

Support and Services:

1.Professional Technical Team

Our team is composed of experienced engineers and technical experts who have been deeply engaged in the field of ship mooring for many years. They have in - depth knowledge of various complex dock environments and ship mooring requirements. From the project's preliminary design stage, based on the actual layout of your dock, the types of ships, and the berthing frequency, we accurately plan the optimal installation positions and quantities of T - shaped cast iron mooring bollards. During the installation process, on - site technical guidance is provided to ensure that each bollard is installed in strict accordance with standards, guaranteeing its stability and reliability. In the subsequent usage process, the technical team will also be available at any time to answer your questions and provide professional technical advice.

2.Comprehensive After - sales Service

The after - sales team adheres to the principle of "customer first" and provides you with 24/7 dedicated service. Once you encounter any problems during the use of the T - shaped cast iron mooring bollards, just make a phone call or send an email, and the after - sales staff will respond promptly and provide solutions immediately. We offer regular follow - up services, actively understand the usage status of the products, and discover and assist in solving potential problems in a timely manner. At the same time, we have established a complete spare parts supply system to ensure that when spare parts need to be replaced, they can be delivered quickly, minimizing equipment downtime and ensuring the smooth progress of your port operations.

Our professional technical team and comprehensive after - sales service run through the entire life cycle of the T - shaped cast iron mooring bollards, from procurement to use. This is not only a strong guarantee of product quality but also a solemn commitment to the efficiency and safety of your port operations, allowing you to have no worries and choose with confidence.

In addition, we offer a range of services to complement our mooring bollards products. These include custom design and engineering, installation and commissioning, and repairs and upgrades. Our goal is to provide a comprehensive solution to meet your mooring needs, from product selection to ongoing support.

Any question please let us know ,our JinCheng maritime will provide you the best service with 7*24 hours ~
