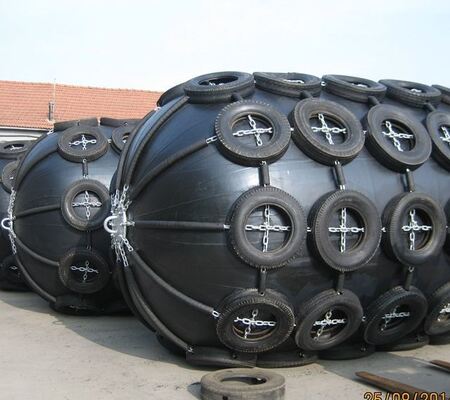

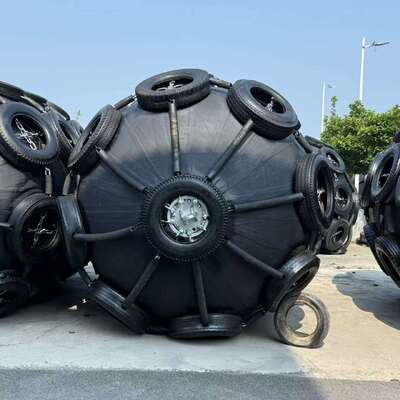

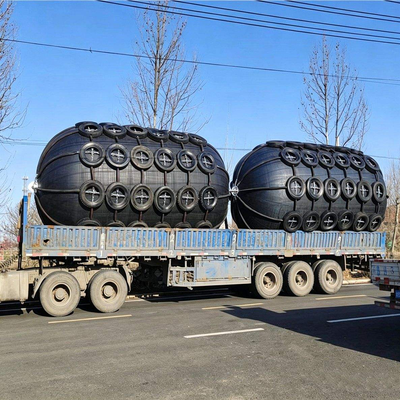

Custom Thickness Rubber Layer Inflatable Boat Fender with High Energy Absorption and Corrosion Resistance for Dock Protection
| Place of Origin | China |
|---|---|
| Brand Name | JC MARINETIME |
| Certification | CCS.ABS.LRS.BV.GL.DNV.NK |
| Model Number | customize |
| Minimum Order Quantity | 1 |
| Price | 665 |
| Packaging Details | Wooden box / Pallet |
| Delivery Time | 7 days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
Product Details
| Function | Edge Protection Of Boat And Dock | Warranty | 2 Years |
|---|---|---|---|
| Tensile Strength | ≥ 10 MPa | Warranty Period | 24 Months |
| Energyabsorption | High Energy Absorption Capacity | Style | Customized |
| Working Temperature | -60-200℃ | Compression Set | ≤ 35% |
| Application | Ship-to-ship, Ship-to-dock, And Dock Protection | Part | Rubber,Boat Protector |
| Resistance | Weather And Corrosion Resistant | Keyword | Rubber Fenders |
| Highlight | custom thickness inflatable boat fender,high energy absorption marine fender,corrosion resistant dock protection fender |
||
Product Description
Custom Thickness Rubber Layer Inflatable Boat Fender Pneumatic Fender Dock Fender For Special Barge Docking Demand
Product Overview
The Sling Type Fender is a lightweight and convenient derivative of the inflatable fender, designed for flexible deployment, quick installation, and compatibility with small to medium-sized vessels or temporary berths. It utilizes high-strength slings instead of traditional chains or frames for lifting and fixation.
Material Advantages
Constructed from synthetic rubber (natural rubber and styrene-butadiene rubber blend) with excellent elasticity for efficient energy absorption during ship impact. The material is resistant to seawater, UV radiation, and acid/alkali corrosion, making it ideal for harsh marine environments.
Internal reinforcement uses high-strength nylon cord fabric to enhance tensile strength, tear resistance, and extend service life.
Key Performance Benefits
- High Energy Absorption: 70%-90% absorption rate compared to 40%-60% for traditional protective planks
- Low Reaction Force: Only 1/3-1/5 of rigid protective planks' reaction force, reducing risks of hull deformation and dock cracks
- Excellent Elasticity: Significant deformation with quick recovery, suitable for multi-directional ship movement
- Adjustable Air Pressure: Adaptable to different ship tonnages, speeds, and sea conditions
Deployment & Operation Advantages
- Lightweight & Easy Installation: Significantly lighter than solid protective planks; compact when deflated for easy transport and storage
- Self-Floating Design: Automatically adjusts height with tide changes, ideal for ports with large tidal differences
- Modular Combination: Can be combined to cover longer shorelines and irregular berths
Key Features
- Lightweight Hoisting: High-strength polyester/nylon slings (10-20 ton tensile strength) integrated with hull body; installation time reduced by over 60%
- Low-Damage Design: Soft sling material prevents scratches on hull coating and reduces wear on fender surfaces
- Small-Tonnage Vessel Optimization: Diameter 0.5-2m, length 1-4m with adjustable air pressure (0.02-0.15MPa) for 500-5000 ton vessels
- Cost-Effective Storage: Deflated volume compressed to 1/10 original size; logistics costs reduced by over 30%
- Weather & Corrosion Resistant: CR or IIR rubber construction withstands salt spray, UV aging, and temperatures from -30℃ to +60℃
- Flexible Combination: Can be used individually or connected to form continuous buffering belts
Technical Parameters
Applications
- Port Terminals: Berth edge protection for container terminals, bulk cargo terminals, and oil terminals
- Shipping Sector: Berthing buffer for ocean-going freighters, tankers, warships, and ship-to-ship collision protection
- Offshore Facilities: Perimeter protection for offshore platforms, buoys, and drilling platforms
- Specialized Scenarios: Temporary docks, offshore construction areas, and specialized protection for LNG carriers
Support & Services
- 24/7 Customer Service: Technical consultation for specification selection, usage methods, and maintenance
- Regular Follow-up Visits: Manufacturer visits to collect feedback and improve product quality
- Maintenance Guidance: Professional guidance on inspection, cleaning, lubrication, and corrosion prevention
JINCHENG Maritime provides excellent quality and attentive service to ensure safety, efficiency, and worry-free operation for your maritime operations.
For any questions, our team is available 24/7 to provide the best service.
